Terex

TB110

Aerial Lift

Max Platform Height
1,320 in
Overall Length
36 in
Overall Width
97 in
All aerial lifts

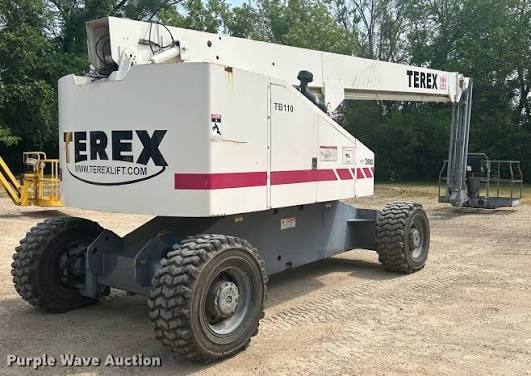

Terex TB110 Aerial Lift
1 / 5
Image 1 of 5
Image: purplewave.com

Specifications

25 data points

Engine

Engine specifications
Engine ModelLRG-425
Gross Power76.0 hp
Engine MakeFord
Fuel TypeGasoline

Dimensions

Dimensions specifications
Ground Clearance11 in
Wheelbase144 in
Overall Length36 in
Overall Width97 in
Tail Swing Radius36 in
Turning Radius271 in
Gradeability35.0 %
Stowed Height113 in
Shipping weight42,000 lb
Wheel track7 in

Performance

Performance specifications
Max Speed3.1 mph
Tire Size15 x 19.5 13 P.R
Hydraulic System Fluid Capacity52.0 gal
Fuel Capacity40.0 gal

Platform

Platform specifications
Max Platform Height1,320 in
Max Platform Weight Capacity500 lb
Platform Inner Length72 in
Platform Inner Width36 in
Max Working Height1,392 in
Max Horizontal Reach804 in
Platform Rotation160 °
