JLG

1850SJ

Aerial Lift

Max Platform Height
2,220 in
Overall Length
757 in
Overall Width
98 in
All aerial lifts

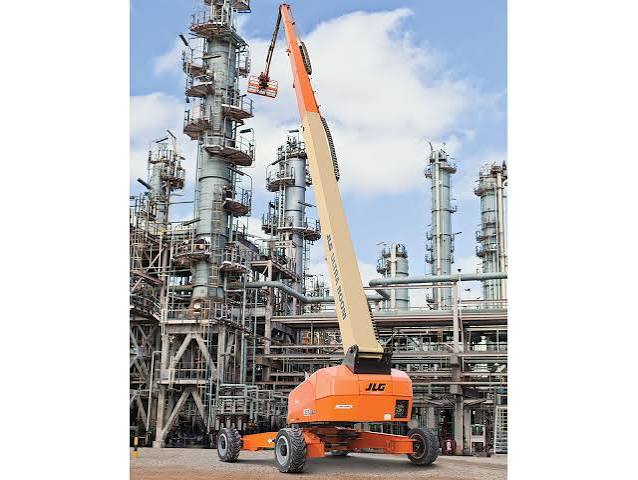

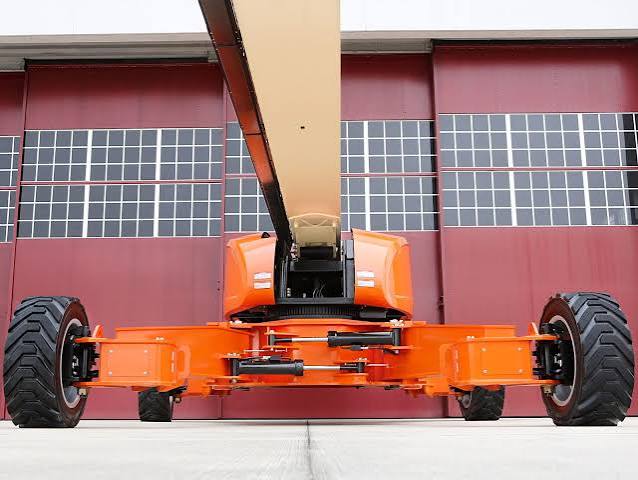

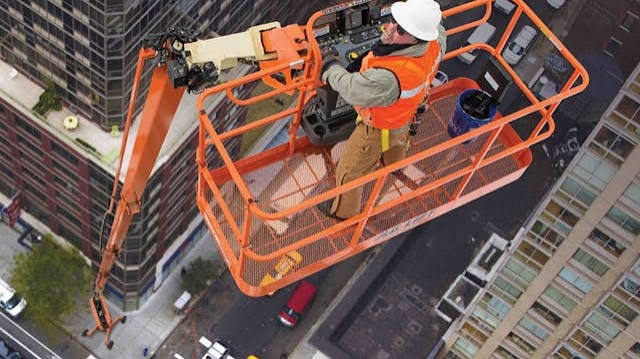

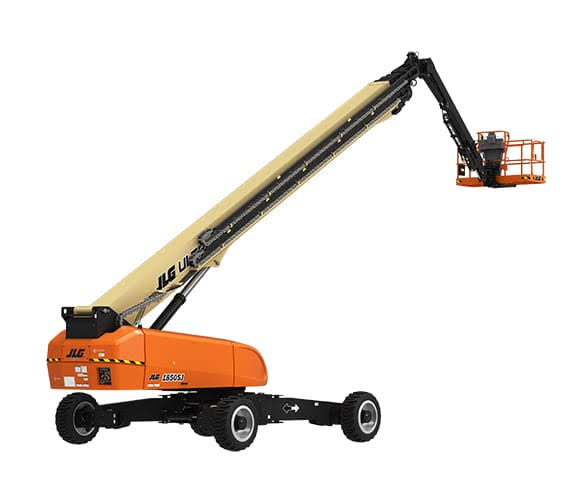

JLG 1850SJ Aerial Lift
1 / 5
Image 1 of 5
Image: fairchildequipment.com

Specifications

26 data points

Engine

Engine specifications
System Voltage12 V
Maximum Ground Bearing Pressure120 psi
Diesel Engine TypeDeutz TD3.6L 99.8 HP

Dimensions

Dimensions specifications
Ground Clearance0 in
Overall Length757 in
Overall Width98 in
Transport Length565 in
Overall Height - mast lowered120 in
Platform Dimension B96 in
Platform Dimension A36 in
Tailswing Radius93 in
Overall Width (Axles Extended)199 in

Performance

Performance specifications
Operating Weight60,300 lb
Tire Size445/500710 Foam-Filled
Hydraulic System Fluid Capacity75.1 gal
Fuel Capacity52.8 gal
Gradeability40.0 %
Drive Speed2.8 mph
Turning Radius - Outside (axles retracted)376 in
Turning Radius - Outside (axles extended)261 in

Swing System

Swing System specifications
Swing360 °
Swing TypeContinuous

Platform

Platform specifications
Max Platform Height2,220 in
Max Horizontal Reach960 in
Platform Capacity - Unrestricted500 lb
Platform Capacity - Restricted1,000 lb
