JLG

600S

Aerial Lift

Max Platform Height
714 in
Overall Length
29 in
Overall Width
98 in
All aerial lifts

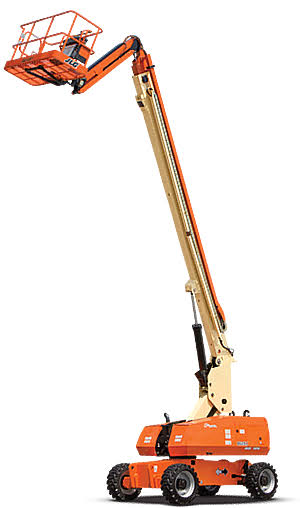

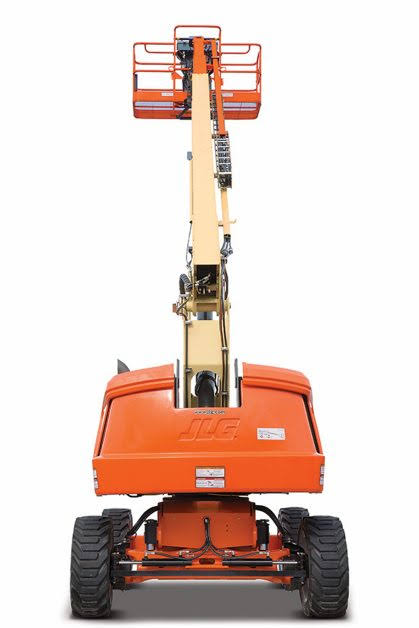

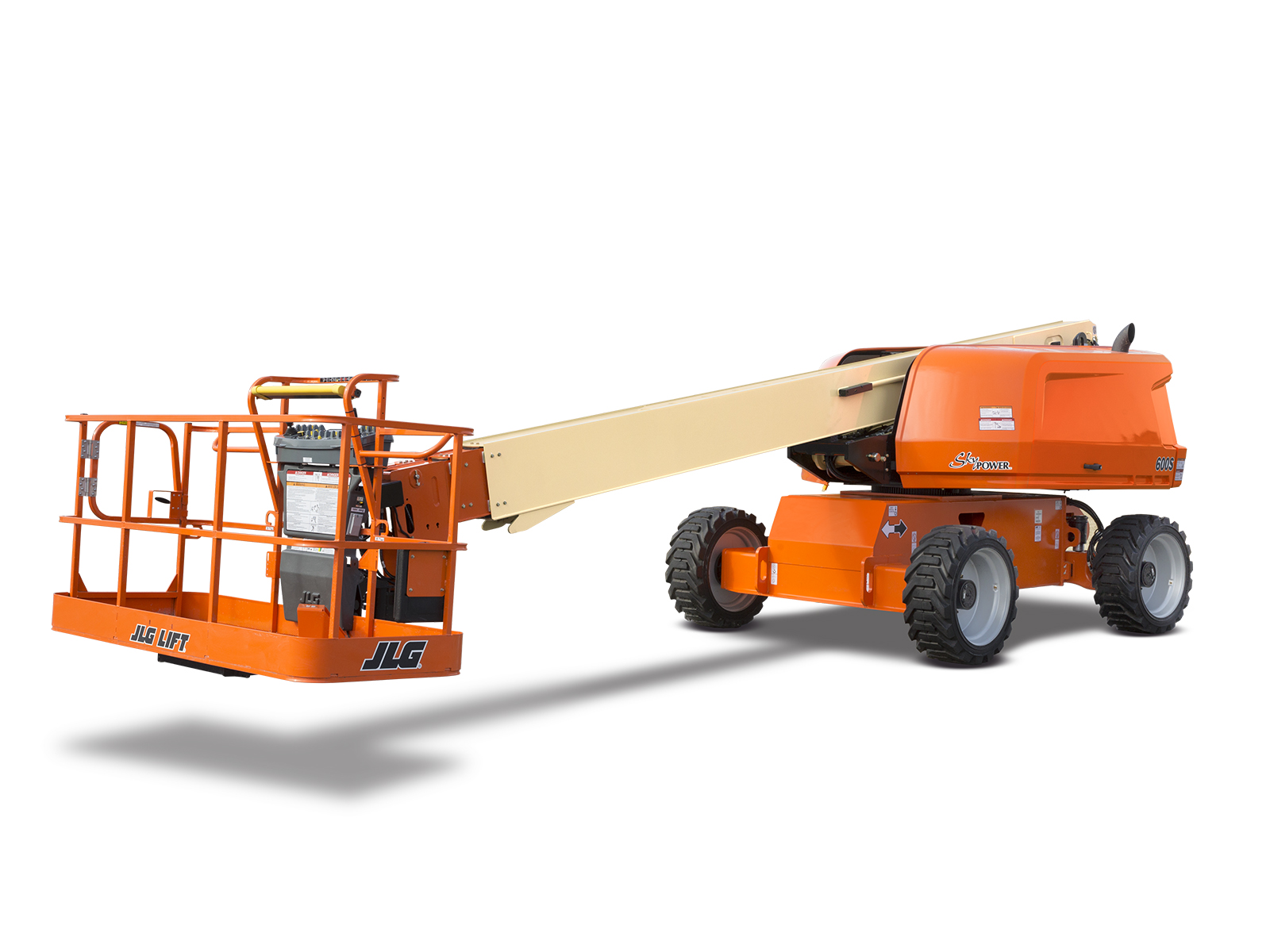

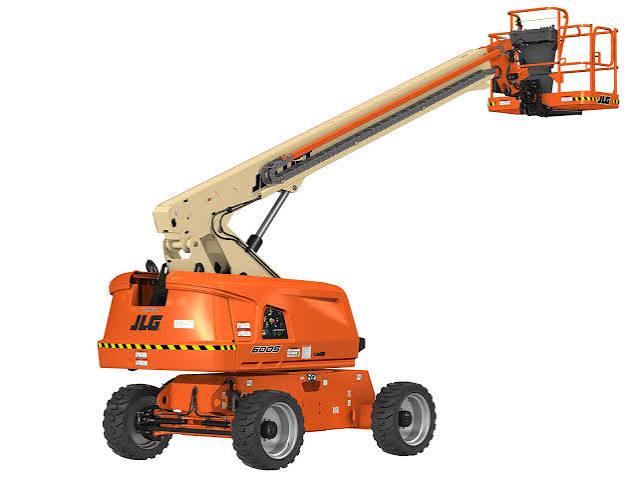

JLG 600S Aerial Lift
1 / 5
Image 1 of 5
Image: papemh.com

Specifications

28 data points

Engine

Engine specifications
Fuel TypeDiesel
System Voltage12 V
Maximum Ground Bearing Pressure6 psi
Diesel Engine TypeDeutz TD2.9L4 Tier 4 Final

Dimensions

Dimensions specifications
Ground Clearance15 in
Overall Length29 in
Overall Width98 in
Overall Height - mast lowered98 in
Track Width22 in
Stowed Width85 in
Stowed Height102 in
Boom Type/SizeST/60.3 ft (0.00 m)
Platform Dimension A36 in
Platform Dimension B96 in
Tailswing Radius48 in

Transmission

Transmission specifications
4WDavail

Tires & Wheels

Tires & Wheels specifications
Tire Size15x19.5

Performance

Performance specifications
Operating Weight25,942 lb
Hydraulic System Fluid Capacity34.0 gal
Fuel Capacity31.0 gal
Gradeability55.0 %
Drive Speed1.6 mph
Swing360 °
Swing TypeContinuous

Platform

Platform specifications
Max Platform Height714 in
Max Horizontal Reach604 in
Platform Capacity - Unrestricted600 lb
Platform Capacity - Restricted1,000 lb
