JLG

660SJ

Aerial Lift

Max Platform Height
800 in
Overall Length
425 in
Overall Width
98 in
All aerial lifts

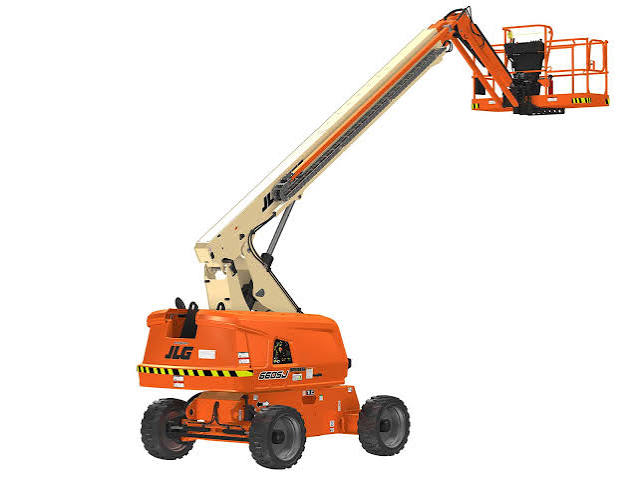

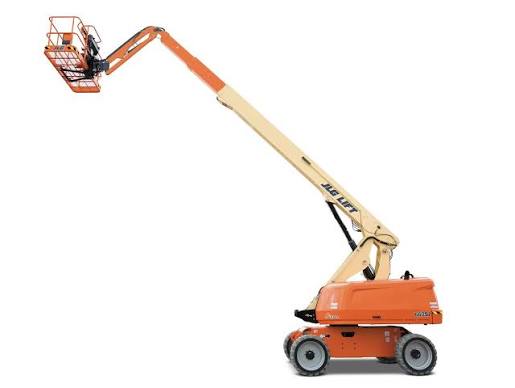

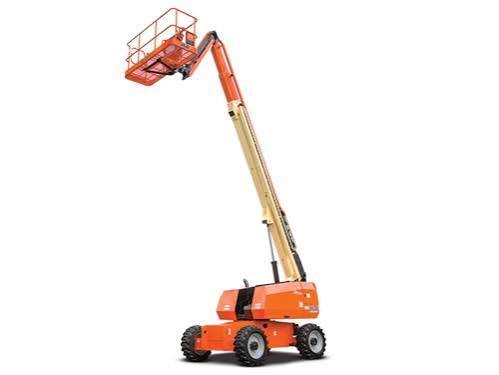

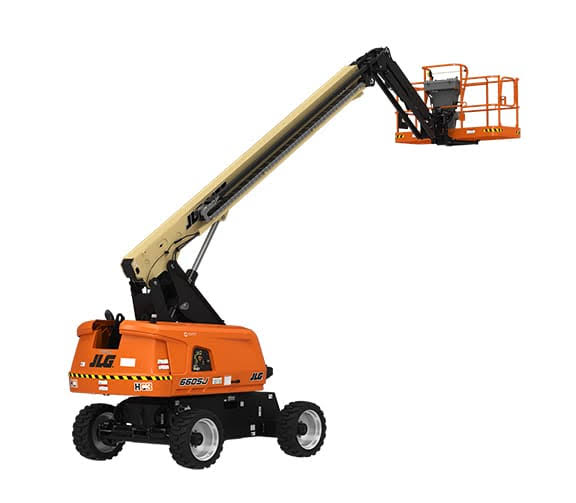

JLG 660SJ Aerial Lift
1 / 5
Image 1 of 5
Image: riwal.com

Specifications

41 data points

Engine

Engine specifications
Engine ModelF4M2011
Gross Power64.4 hp
Fuel TypeDiesel
System Voltage12 V
Fuel tank31.0 gal
Maximum Ground Bearing Pressure85 psi
Diesel Engine TypeDeutz TD2.9L4 Tier 4 Final
Dual Fuel Engine TypeFord MSG425-DF
Diesel Engine Power67.0 hp
Dual Fuel Engine Power84.0 hp

Dimensions

Dimensions specifications
Ground Clearance11 in
Wheelbase97 in
Overall Length425 in
Overall Width98 in
Overall Height98 in
Overall Height - mast lowered102 in
Stowed Width85 in
Stowed Height102 in
Boom Type/SizeST/66.8 ft (0.00 m)
Platform Dimension A36 in
Platform Dimension B97 in

Tires & Wheels

Tires & Wheels specifications
Tire Size15x19.5

Performance

Performance specifications
Operating Weight25,341 lb
Max Speed4.3 mph
Tire Size41/181.11 X 22.5
Hydraulic System Fluid Capacity34.0 gal
Tire Fill/TypeLug Tread
Fuel Capacity39.9 gal
Gradeability45.0 %
Drive Speed3.8 mph
Swing360 °
Axle Oscillation8 in

Platform

Platform specifications
Max Platform Height800 in
Max Platform Weight Capacity500 lb
Platform Inner Length96 in
Platform Inner Width36 in
Max Horizontal Reach685 in
Platform Rotation180 °
Platform Capacity - Unrestricted550 lb
Platform Railing Height789 in
Platform Capacity - Restricted750 lb
