JLG

M600JP

Aerial Lift

Max Platform Height
725 in
Overall Length
400 in
Overall Width
86 in
All aerial lifts

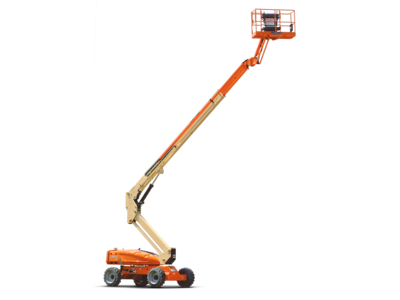

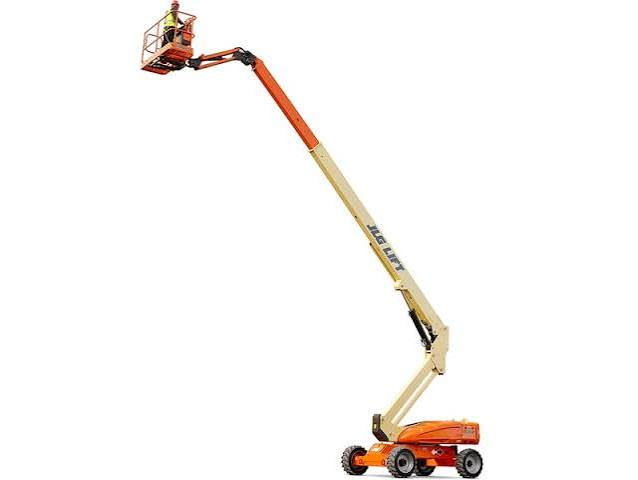

JLG M600JP Aerial Lift
1 / 5
Image 1 of 5
Image: easternlifttruck.com

Specifications

33 data points

Engine

Engine specifications
Engine ModelKubota
Fuel TypeDiesel
System Voltage48 V
Battery Amp Hours415
Number of Batteries8
Fuel tank13.0 gal

Dimensions

Dimensions specifications
Ground Clearance12 in
Wheelbase108 in
Overall Length400 in
Overall Width86 in
Overall Height101 in
Turning Radius185 in
Overall Height - mast lowered101 in
Platform Dimension A30 in
Platform Dimension B73 in
Tailswing Radius48 in

Performance

Performance specifications
Operating Weight16,050 lb
Max Speed3.0 mph
Tire Size36 x 14-22.5
Hydraulic System Fluid Capacity15.0 gal
Tire Fill/TypePneumatic non marking
Platform Capacity500 lb
Swing400 °
Drive Speed - Platform Lowered3.0 mph
Swing TypeNon-Continuous
Jib - Range of articulation145 °

Platform

Platform specifications
Max Platform Height725 in
Max Platform Weight Capacity500 lb
Platform Inner Length72 in
Platform Inner Width30 in
Max Horizontal Reach534 in
Platform Rotation180 °
Platform Railing Height725 in
