John Deere
160D LC
- Operating Weight
- 39,508 lb
- Max Digging Depth
- 236 in
- Max Digging Depth
- 256 in
- Net Power
- 121.0 hp
1 / 5

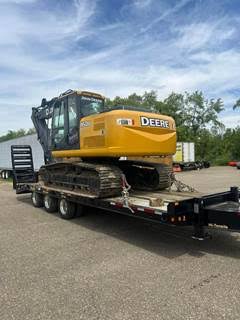

Image 1 of 5
Specifications
47 data points
Operating Specifications
| Operating Weight | 39,508 lb |
|---|---|
| Fuel Capacity | 84.6 gal |
| Hydraulic Pump Flow Capacity | 101.0 gal/min |
| Hydraulic System Fluid Capacity | 52.0 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 4.0 gal |
| Cooling System Fluid Capacity | 5.9 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.6 gal |
| Alternator Supplied Amperage | 80 A |
Engine
| Engine Model | 4045H |
|---|---|
| Displacement | 276 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 121.0 hp |
| Aspiration | Turbocharged air-to-air charge air cooler |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 117 in |
| Length of Track on Ground | 122 in |
| Tail Swing Radius | 98 in |
| Width to Outside of Tracks | 103 in |
| Removal Counterweight Clearance | 40 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 103 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.3 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 43 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 38,030 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 236 in |
|---|---|
| Max Reach Along Ground | 343 in |
| Max Loading Height | 244 in |
| Max Vertical Wall Digging Depth | 204 in |
| Max Cutting Height | 350 in |
| Shipping Length of Unit | 337 in |
| Shipping Height of Unit | 114 in |
Bucket
| Reference Bucket Capacity | 0.90 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.20 yd³ |
| Minimum Bucket Capacity | 0.60 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 256 in |
|---|---|
| Max Vertical Wall Digging Depth | 224 in |
| Max Cutting Height | 360 in |
| Max Loading Height | 252 in |
| Max Reach Along Ground | 361 in |
| Shipping Length of Unit | 339 in |
| Shipping Height of Unit | 124 in |
