John Deere

250D

Off-Highway Truck

Operating Weight
91,490 lb
Max Speed
31.0 mph
Net Power
265.0 hp
All off-highway trucks

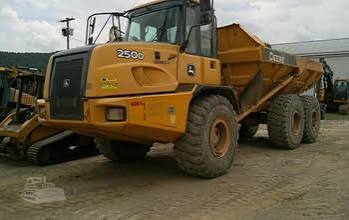

John Deere 250D Off-Highway Truck
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity90.0 gal
Tire Size23.5R25
Engine Oil Capacity6.7 gal
Cooling System Fluid Capacity8.7 gal
Hydraulic System Fluid Capacity20.8 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A
Transmission Fluid Capacity5.8 gal

Engine

Engine specifications
Engine Model6090
Displacement549 in³
Power Measured @2,000 rpm
Net Power265.0 hp
Number of Cylinders6
AspirationTurbocharger charge air cooled
Torque Measured @1,400 rpm
Max Torque789 lb-ft
MakeDeere

Weights

Weights specifications
Operating Weight91,490 lb
Total Empty40,345 lb
Front Axle - empty22,355 lb
Total Loaded91,492 lb
Rear Axle - empty8,973 lb
Front Axle - loaded29,013 lb
Rear Axle - loaded31,085 lb
Center Axle - empty8,995 lb
Center Axle - loaded31,394 lb

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase198 in
Overall Length374 in
Overall Width111 in
Overall Height138 in
Dump Height241 in
Dump Ground Clearance24 in

Transmission

Transmission specifications
Max Speed31.0 mph
Transmission TypeZF 6HP592C fully automatic
Number of Forward Gears6
Number of Reverse Gears1

Drive System

Drive System specifications
Drive Config6x6

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidArticulated

Dump

Dump specifications
Rated Payload51,150 lb
Dump Angle70 °
Raise Time11.9 s
Lower Time6.0 s
Capacity - Heaped18.00 yd³
Capacity - Struck13.69 yd³
