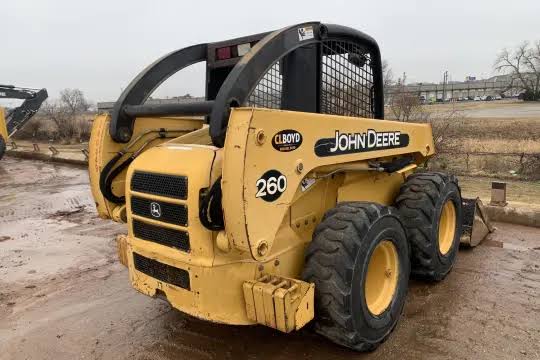

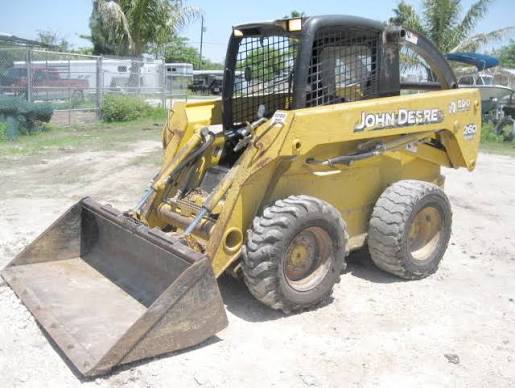

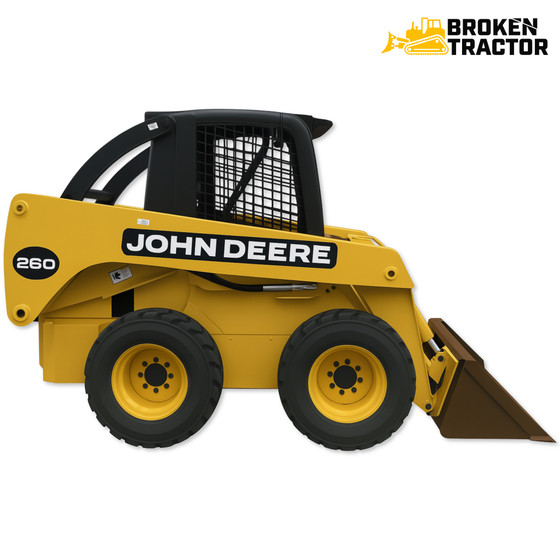

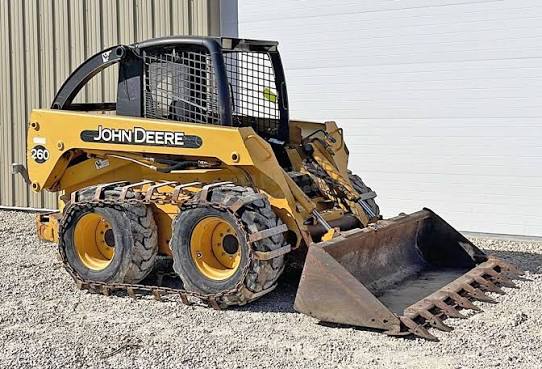

John Deere 260 Skid Steer Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,250 lb
Max Speed12.0 mph
Fuel Capacity20.0 gal
Hydraulic System Fluid Capacity9.0 gal
Tire Size14x17.5 SKS. 12PR
Operating Voltage12 V
Alternator Supplied Amperage55 A
Cooling System Fluid Capacity2.9 gal
Operating Speed7.1 mph

Engine

Engine specifications
Engine Model3029T
Displacement179 in³
Power Measured @2,400 rpm
Number of Cylinders3

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity33.1 gal/min
Relief Valve Pressure3,100 psi
Pump Type3-spoon open center

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab84 in
Wheelbase48 in
Width Over Tires77 in
Reach at Max Lift and Dump32 in
Length with Bucket138 in
Clearance at Max Lift and Dump103 in
Turning Radius from Center - inc bucket84 in
Turning Radius from Center - machine rear69 in
Length w/o Bucket115 in

Loader

Loader specifications
Operating Load Rating2,400 lb
Tipping Angle5,000 °
Breakout Force7,500 psi
