John Deere

315C

Backhoe Loader

Bucket Capacity
1.29 yd³
Max Speed
25.3 mph
Gross Power
71.0 hp
Net Power
67.0 hp
All backhoe loaders

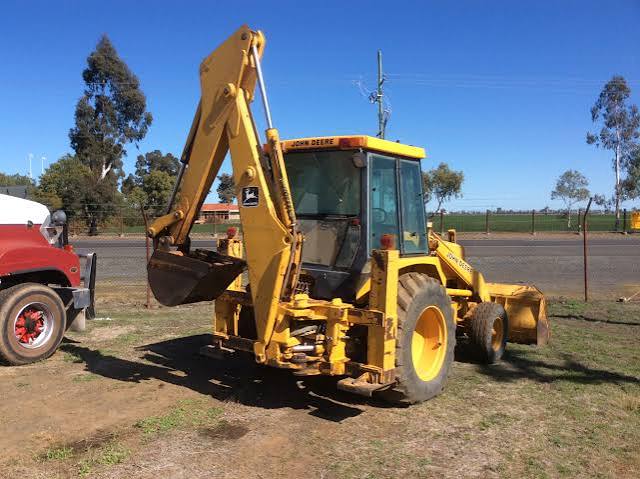

John Deere 315C Backhoe Loader
1 / 5
Image 1 of 5
Image: tradeearthmovers.com.au

Specifications

47 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity26.0 gal
Hydraulic System Fluid Capacity21.0 gal
Cooling System Fluid Capacity4.3 gal
Tire Size Front - 2wd / 4wd11L-168PRF3/10.5/-188PRTG2
Operating Voltage12 V
Oil System Fluid Capacity2.3 gal
Alternator Supplied Amperage65 A
Turning Radius119 in
Transmission Fluid Capacity1.9 gal
Max Weight13,850 lb
Front Axle Fluid Capacity6.0 gal

Engine

Engine specifications
Engine Model4039D
Displacement239 in³
Power Measured @2,200 rpm
Gross Power71.0 hp
Net Power67.0 hp
Number of Cylinders4
Torque Measured @1,200 rpm
Net Max Torque192 lb-ft
Net Torque Rise0

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity35.0 gal/min
Relief Valve Pressure2,700 psi
Pump TypeGear open center

Dimensions

Dimensions specifications
Ground Clearance15 in
Wheelbase83 in
Transport Width94 in
Transport Length217 in
Height to Top of Suspended Cab103 in

Transmission

Transmission specifications
Max Speed25.3 mph
Max Speed - Reverse22.8 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission Type4-speed helical gear synchronized collar shift transmission with hydraulic reverser

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size16.9-2810PRR1/R4

Backhoe

Backhoe specifications
Dig Depth169 in
Reach From Swivel210 in
Dig Depth - Extended203 in
Load Height - Extended142 in
Bucket Dig Force11,570 lb
Reach From Swivel - Extended253 in
Reach at Load Height - Extended304 in
Bucket Dig Force - Extended11,400 lb

Loader

Loader specifications
Bucket Capacity1.29 yd³
Clearance at Max Dump Height132 in
Bucket Breakout Force9,350 lb
Bucket Width92 in
Dig Depth18 in
