John Deere

326E

Skid Steer Loader

Operating Weight
8,200 lb
Max Speed
11.0 mph
All skid steer loaders

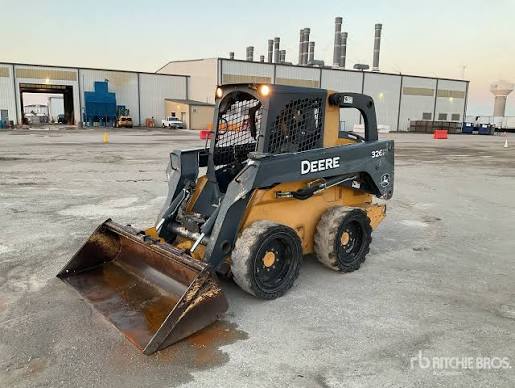

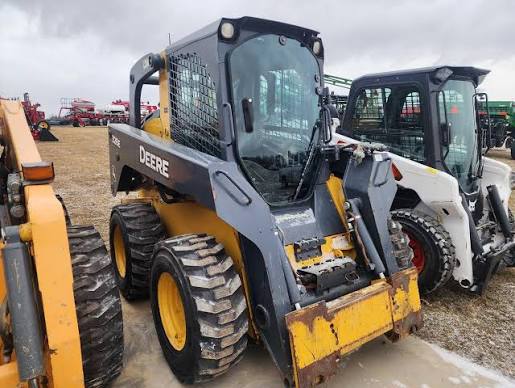

John Deere 326E Skid Steer Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,200 lb
Max Speed11.0 mph
Fuel Capacity24.4 gal
Hydraulic System Fluid Capacity21.2 gal
Operating Voltage12 V
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine Model4TNV98CT standard
Displacement201 in³
Power Measured @2,500 rpm
Number of Cylinders4
Torque Measured @1,625 rpm
Engine MakeYanmar
Stroke4 in
Bore4 in
Air cleanerDry dual element
Emissions CertificationTier 4
Net Torque Rise—

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity33.1 gal/min
Hydraulic Horsepower-Standard Flow42.0 hp
Hydraulic Horsepower_High Flow63.0 hp
System Pressure at Couplers3,450 psi

Dimensions

Dimensions specifications
Ground Clearance10 in
Wheelbase49 in
Reach at Max Lift and Dump40 in
Height - Top of ROPS/FOPS84 in
Length with Bucket155 in
Length w/o Bucket121 in
Angle of departure25 °
Hinge pin height, maximum height125 in
Turning Radius - TTS87086 in

General Specifications

General Specifications specifications
Engine Power HP (KW)74 (54.8) — Starting 2016 Model Year
Operating Width IN. (CM)72.6 (184) — Starting 2016 Model Year
OPERATING LOAD LBS. (KG)2,690 (1,221) — Starting 2016 Model Year

Loader

Loader specifications
Operating Load Rating2,850 lb
Operating Width73 in
Tipping load (ISO 14397)5,400 lb
bucket breakout force (ISO 14397)7,750 lb
Boom breakout force5,000 lb
Width without Bucket73 in
Dump angle @ max. height45 °
Rollback - Ground Level35 °

Axles

Axles specifications
Maximum Axle Torque5,680 lb-ft
