John Deere

328

Skid Steer Loader

Operating Weight
8,580 lb
Bucket Capacity
0.71 yd³
Max Speed
12.0 mph
All skid steer loaders

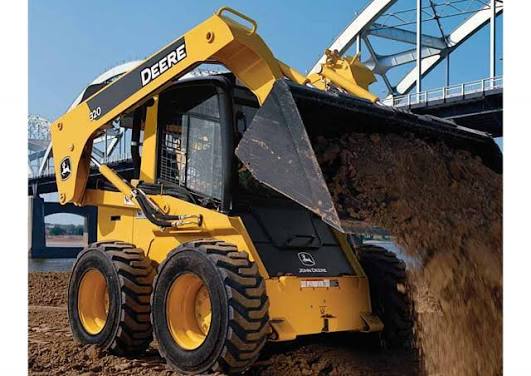

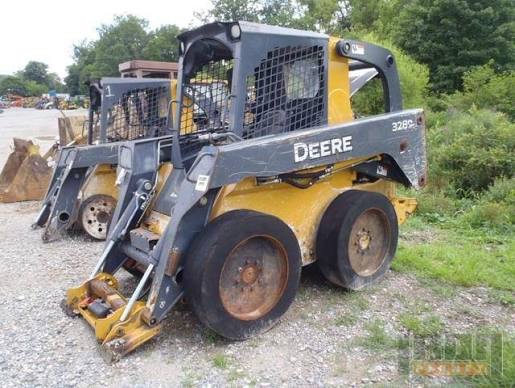

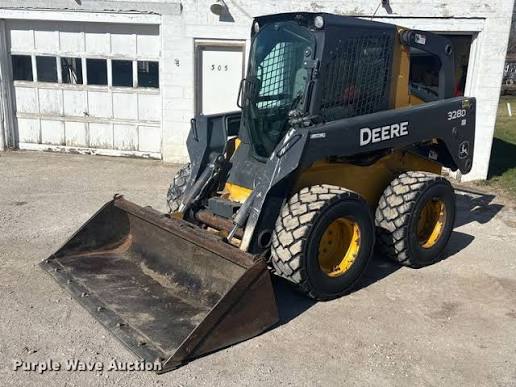

John Deere 328 Skid Steer Loader
1 / 5
Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,580 lb
Max Speed12.0 mph
Fuel Capacity24.0 gal
Tire Size14x17.5 12PR
Operating Voltage12 V
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine Model5030TW
Displacement186 in³
Power Measured @2,800 rpm
Number of Cylinders5
AspirationTurbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity22.0 gal/min
Relief Valve Pressure3,100 psi

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab84 in
Wheelbase48 in
Overall Length228 in
Overall Width108 in
Width Over Tires77 in
Reach at Max Lift and Dump32 in
Overall Height67 in
Length with Bucket139 in
Clearance at Max Lift and Dump103 in
Turning Radius from Center - inc bucket84 in
Length w/o Bucket117 in
Weight2,663 lb
Tractor PTO Power Required35.0 hp

Bale Size

Bale Size specifications
Bale Height15 in
Bale Length - max50 in
Bale Width19 in
Bale Length - min13 in

Baler Pickup

Baler Pickup specifications
Lift Typecrank
Number of Bars4
Number of Tines104
Overall Width76 in
Tine to Tine Width64 in

Feeding Chamber

Feeding Chamber specifications
Feed Opening295 in³

Plunger

Plunger specifications
Bearing Typesealed ball-bearing rollers
SPM80
Stroke Length30 in

Wrapping System

Wrapping System specifications
Twine Ball Capacity4
Twine Typeplastic or sisal

Loader

Loader specifications
Bucket Capacity0.71 yd³
Operating Load Rating2,750 lb
Tipping Angle5,500 °
Breakout Force10,500 psi
