John Deere
Terex
TA27
Off-Highway Truck
46 specifications
1 / 5

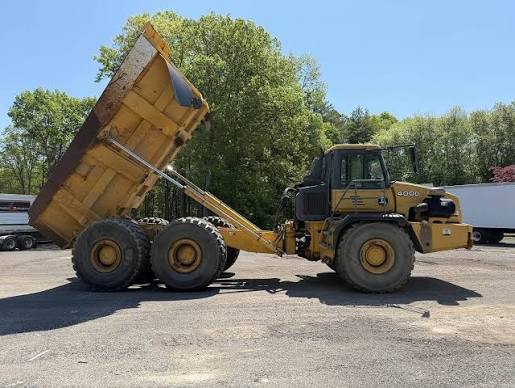

Image 1 of 5
Specifications
45 data points
Operating Specifications
| Fuel Capacity | 128.0 gal |
|---|---|
| Tire Size | 29.5R25 |
| Engine Oil Capacity | 8.0 gal |
| Cooling System Fluid Capacity | 8.9 gal |
| Hydraulic System Fluid Capacity | 47.0 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 A |
| Transmission Fluid Capacity | 9.0 gal |
Engine
| Engine Model | OM501LA |
|---|---|
| Displacement | 729 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 413.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged and charge air cooled |
| Torque Measured @ | 1,080 rpm |
| Max Torque | 1,454 lb-ft |
| Make | Mercedes-Benz |
Weights
| Operating Weight | 147,600 lb |
|---|---|
| Total Empty | 65,960 lb |
| Front Axle - empty | 32,920 lb |
| Total Loaded | 147,530 lb |
| Rear Axle - empty | 15,430 lb |
| Front Axle - loaded | 43,340 lb |
| Rear Axle - loaded | 50,920 lb |
| Center Axle - empty | 17,610 lb |
| Center Axle - loaded | 53,270 lb |
Dimensions
| Ground Clearance | 23 in |
|---|---|
| Wheelbase | 215 in |
| Overall Length | 415 in |
| Overall Width | 150 in |
| Overall Height | 154 in |
| Dump Height | 285 in |
| Dump Ground Clearance | 26 in |
Transmission
| Max Speed | 32.0 mph |
|---|---|
| Transmission Type | Allison 4500R ORS fully automatic engine |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 1 |
Drive System
| Drive Config | 6x6 |
|---|
Articulating/Rigid
| Articulating/Rigid | Articulated |
|---|
Dump
| Rated Payload | 81,570 lb |
|---|---|
| Dump Angle | 70 ° |
| Raise Time | 13.0 s |
| Lower Time | 7.6 s |
| Capacity - Heaped | 29.30 yd³ |
| Capacity - Struck | 22.10 yd³ |
