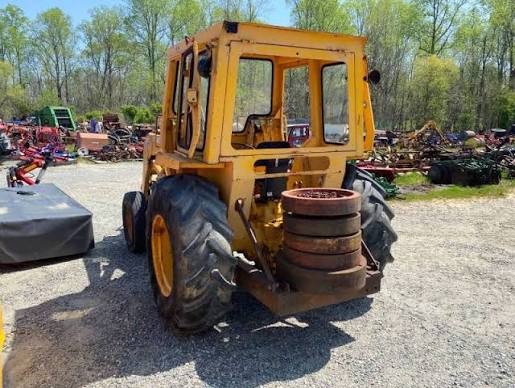

570N EP
Skip Loader
36 specifications
1 / 5
Image 1 of 5
Specifications
37 data points
Operating Specifications
| Fuel Capacity | 19.5 gal |
|---|---|
| Hydraulic System Fluid Capacity | 8.5 gal |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 2.3 gal |
| Alternator Supplied Amperage | 35 A |
| Cooling System Fluid Capacity | 3.0 gal |
| Tire Size Front - 2wd / 4wd | 7.50/8.00-16F3/11L-15 F3 |
| Transmission Fluid Capacity | 8.5 gal |
| Turning Radius | 122 in |
Engine
| Engine Model | 300 Series |
|---|---|
| Displacement | 219 in³ |
| Power Measured @ | 2,500 rpm |
| Net Power | 62.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Naturally aspirated |
| Torque Measured @ | 1,300 rpm |
| Net Max Torque | 160 lb-ft |
Hydraulic System
| Pump Flow Capacity | 20.6 gal/min |
|---|---|
| Relief Valve Pressure | 2,000 psi |
Transmission
| Max Speed | 16.4 mph |
|---|---|
| Max Speed - Reverse | 18.7 mph |
| Number of Forward Gears | 8 |
| Number of Reverse Gears | 8 |
| Transmission Type | Collar shift with hydraulic reverser |
Tires & Wheels
| Rear Tires Size | 16.9-24R1/19.5L-24R4 |
|---|
Backhoe
| Dig Depth | 185 in |
|---|---|
| Bucket Dig Force | 9,650 lb |
| Reach From Swivel | 224 in |
| Bucket Dig Force - Extended | 9,650 lb |
| Dig Depth - Extended | 170 in |
| Load Height - Extended | 139 in |
Loader
| Bucket Capacity | 1.29 yd³ |
|---|---|
| Reach at Max Dump Height | 33 in |
| Bucket Breakout Force | 7,500 lb |
| Bucket Width | 89 in |
| Clearance at Max Dump Height | 102 in |
| Dig Depth | 4 in |
