John Deere

410C

Backhoe Loader

Bucket Capacity
1.29 yd³
Max Speed
22.1 mph
Gross Power
80.0 hp
Net Power
75.0 hp
All backhoe loaders

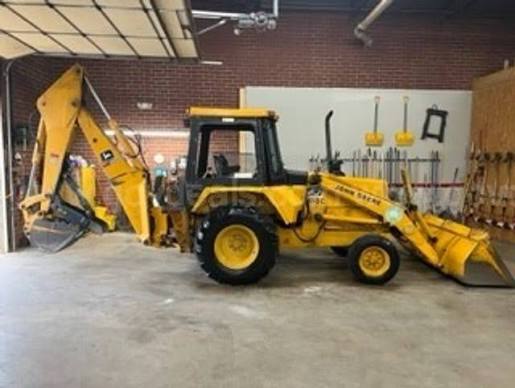

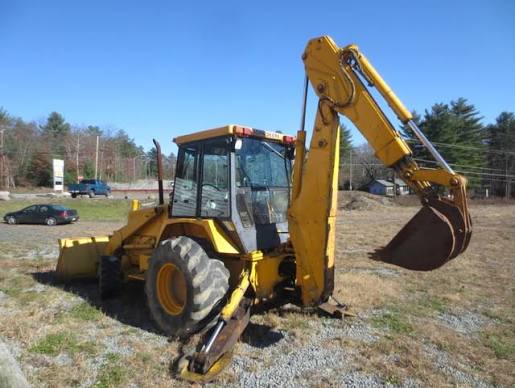

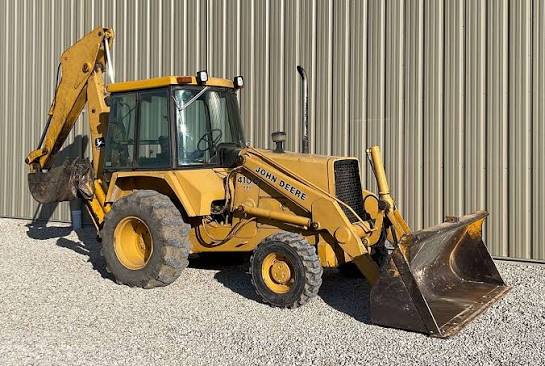

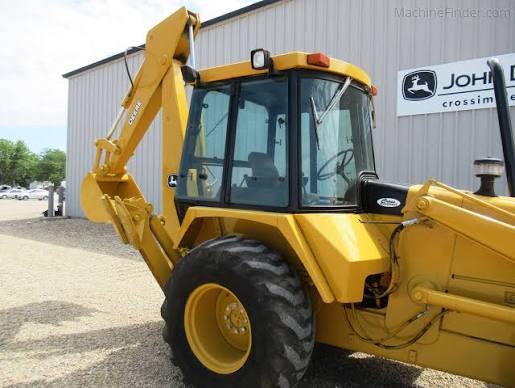

John Deere 410C Backhoe Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity23.0 gal
Hydraulic System Fluid Capacity21.0 gal
Cooling System Fluid Capacity4.3 gal
Tire Size Front - 2wd / 4wd11L-1512PR F3;12.00-16.58PR
Operating Voltage12 V
Oil System Fluid Capacity2.3 gal
Alternator Supplied Amperage65 A
Turning Radius141 in
Transmission Fluid Capacity21.0 gal
Max Weight14,400 lb

Engine

Engine specifications
Engine Model4276D
Displacement276 in³
Power Measured @2,200 rpm
Gross Power80.0 hp
Net Power75.0 hp
Number of Cylinders4
Aspirationnaturally aspirated
Torque Measured @1,200 rpm
Net Max Torque215 lb-ft
Net Torque Rise0

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity35.0 gal/min
Relief Valve Pressure2,500 psi
Pump Type8 radial pistons variable flow

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase83 in
Transport Width93 in
Transport Length282 in
Height to Top of Suspended Cab104 in

Transmission

Transmission specifications
Max Speed22.1 mph
Max Speed - Reverse25.6 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission TypeManual shift with first and second speeds having sliding collar engagement and third and fourth speeds engaged with cone-type synchronizer.

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size17.5-24 10PR R4;19.5L-2410PR R4/21L-2410PR R4

Backhoe

Backhoe specifications
Dig Depth185 in
Reach From Swivel222 in
Dig Depth - Extended222 in
Load Height - Extended168 in
Bucket Dig Force11,700 lb
Reach From Swivel - Extended258 in
Reach at Load Height - Extended302 in
Bucket Dig Force - Extended11,700 lb

Loader

Loader specifications
Bucket Capacity1.29 yd³
Bucket Breakout Force8,800 lb
Bucket Width92 in
