John Deere

444D

Wheel Loader

Operating Weight
19,220 lb
Bucket Capacity - heaped
1.50 yd³
Gross Power
97.0 hp
Net Power
90.0 hp
All wheel loaders

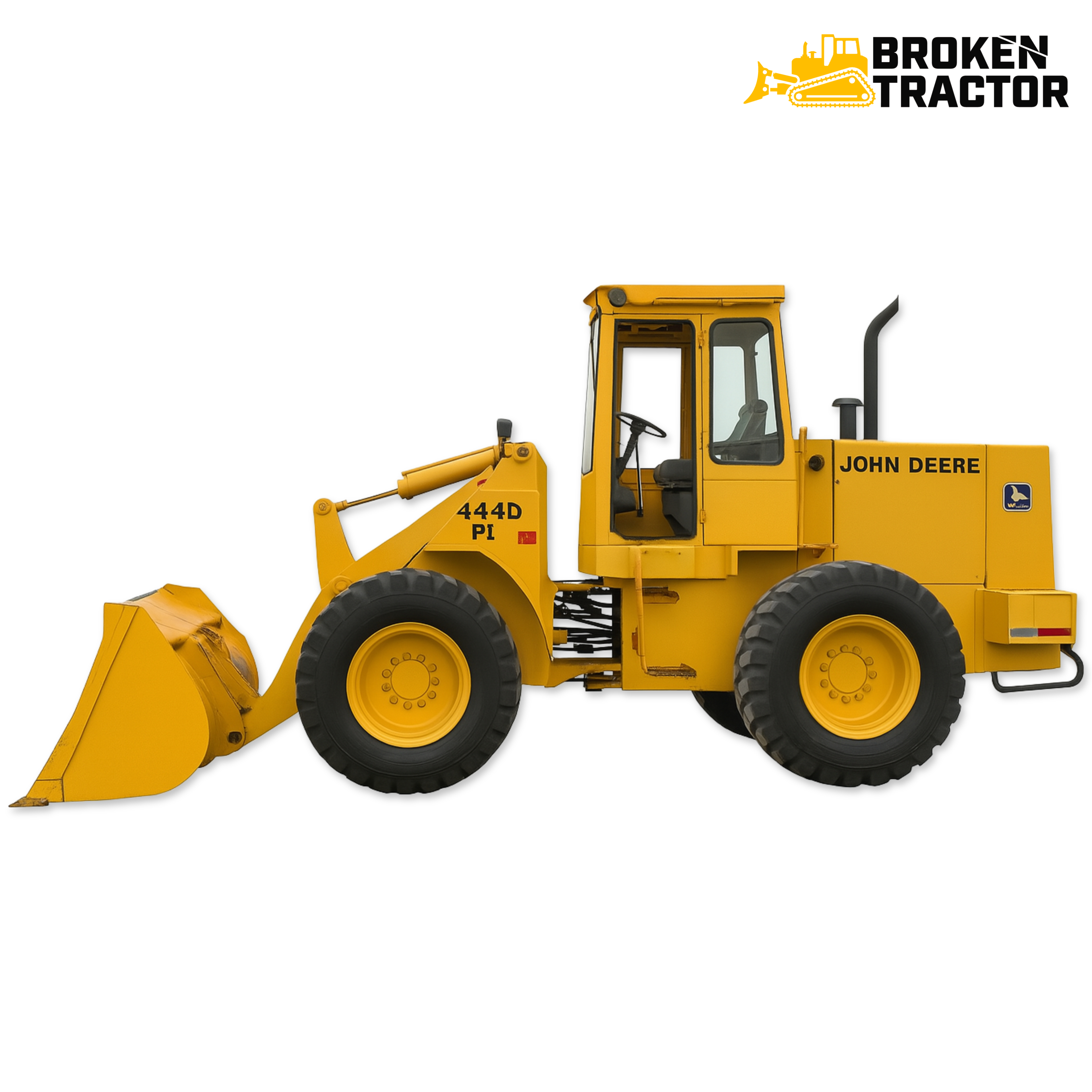

John Deere 444D Wheel Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight19,220 lb
Fuel Capacity50.0 gal
Tire Size15.5-25
Hydraulic System Fluid Capacity16.2 gal
Static Tipping Weight14,310 lb
Operating Voltage12 V
Turning Radius167 in
Engine Oil Fluid Capacity3.1 gal
Rear Axle Oscillation22 °
Alternator Supplied Amperage65 A
Front Axle/Diff Fluid Capacity4.3 gal
Rear Axle/Diff Fluid Capacity4.3 gal
Cooling System Fluid Capacity5.6 gal
Transmission Fluid Capacity10.1 gal

Engine

Engine specifications
Engine Model6-359D
Displacement359 in³
Power Measured @2,400 rpm
Gross Power97.0 hp
Net Power90.0 hp
Number of Cylinders6
AspirationNatural
Torque Measured @1,300 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity40.8 gal/min
Raise Time5.9 s
Lower Time3.6 s
Dump Time1.5 s
Relief Valve Setting2,250 psi
Pump TypeGear type pump

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab120 in
Wheelbase95 in
Width Over Tires88 in
Reach at Max Lift and Dump33 in
Length with Bucket on Ground231 in
Hinge Pin - Max Height137 in

Transmission

Transmission specifications
Max Speed - Forward24.6 mph
Max Speed - Reverse8.8 mph
Transmission TypePower Shift Planetary
Number of Forward Gears4
Number of Reverse Gears2

Bucket

Bucket specifications
Bucket Capacity - heaped1.50 yd³
Bucket Capacity - struck1.29 yd³
Dump Clearance at Max Raise110 in
Breakout Force17,000 lb
Bucket Width89 in
