John Deere
444K Powerllel w/Q Coupler
- Operating Weight
- 26,619 lb
- Bucket Capacity - heaped
- 2.50 yd³
- Net Power
- 128.0 hp
1 / 5

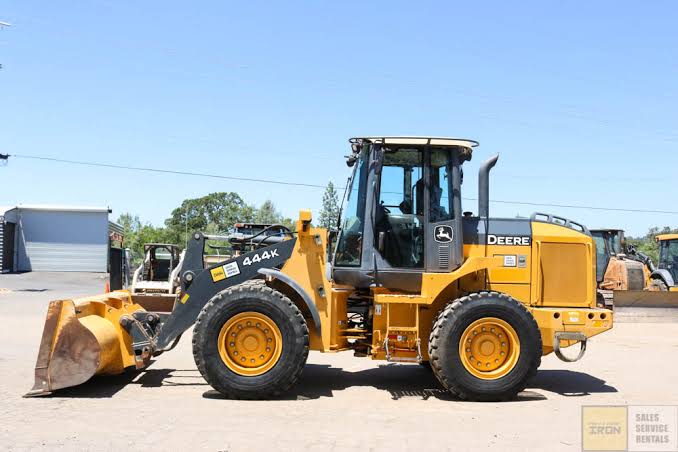

Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 26,619 lb |
|---|---|
| Fuel Capacity | 64.0 gal |
| Tire Size | 17.5 R 25 |
| Hydraulic System Fluid Capacity | 24.1 gal |
| Static Tipping Weight | 15,939 lb |
| Operating Voltage | 24 V |
| Turning Radius | 187 in |
| Engine Oil Fluid Capacity | 4.7 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 5.9 gal |
| Rear Axle/Diff Fluid Capacity | 5.9 gal |
| Cooling System Fluid Capacity | 5.1 gal |
| Transmission Fluid Capacity | 4.9 gal |
Engine
| Engine Model | E 4045H Tier III certified |
|---|---|
| Displacement | 276 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 128.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged charge air cooled |
| Torque Measured @ | 1,400 rpm |
| Torque Rise | 32.0 % |
Hydraulic System
| Pump Flow Capacity | 37.0 gal/min |
|---|---|
| Raise Time | 5.9 s |
| Lower Time | 1.9 s |
| Dump Time | 1.1 s |
| Relief Valve Setting | 3,600 psi |
| Pump Type | variable displacement axial piston |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 126 in |
| Wheelbase | 109 in |
| Width Over Tires | 96 in |
| Reach at Max Lift and Dump | 46 in |
| Length with Bucket on Ground | 282 in |
| Hinge Pin - Max Height | 145 in |
Transmission
| Max Speed - Forward | 22.4 mph |
|---|---|
| Max Speed - Reverse | 15.8 mph |
| Transmission Type | Countershaft powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 2.50 yd³ |
|---|---|
| Bucket Capacity - struck | 2.11 yd³ |
| Dump Clearance at Max Raise | 102 in |
| Breakout Force | 13,352 lb |
| Bucket Width | 101 in |
