Volvo

L40

Wheel Loader

Operating Weight
15,984 lb
Bucket Capacity - heaped
1.90 yd³
Gross Power
94.0 hp
Net Power
86.0 hp
All wheel loaders

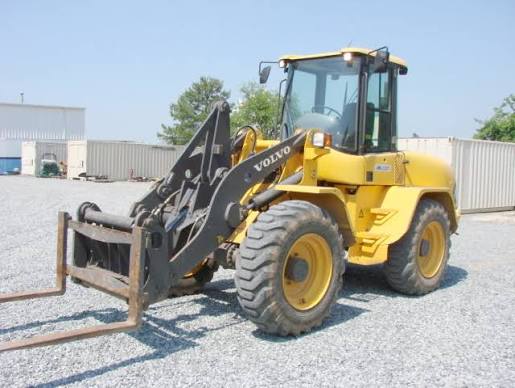

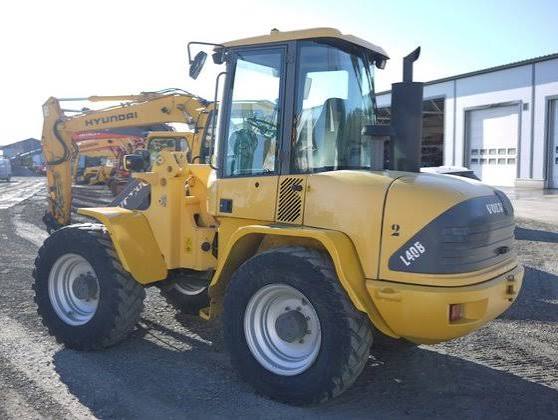

Volvo L40 Wheel Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

41 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,984 lb
Fuel Capacity34.4 gal
Tire Size15.5-25
Hydraulic System Fluid Capacity29.1 gal
Static Tipping Weight11,464 lb
Operating Voltage12 V
Turning Radius189 in
Engine Oil Fluid Capacity3.2 gal
Rear Axle Oscillation20 °
Alternator Supplied Amperage55 A
Front Axle/Diff Fluid Capacity2.1 gal
Rear Axle/Diff Fluid Capacity2.7 gal

Engine

Engine specifications
Engine ModelBF4M 1013
Displacement291 in³
Power Measured @2,100 rpm
Gross Power94.0 hp
Net Power86.0 hp
Number of Cylinders4
Aspirationturbocharged
Torque Measured @1,400 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity28.1 gal/min
Raise Time6.0 s
Lower Time5.0 s
Dump Time1.5 s
Relief Valve Setting3,046 psi
Pump Typeaxial piston pump

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab117 in
Wheelbase95 in
Width Over Tires85 in
Reach at Max Lift and Dump32 in
Length with Bucket on Ground228 in
Hinge Pin - Max Height141 in

Transmission

Transmission specifications
Max Speed - Forward21.8 mph
Max Speed - Reverse21.8 mph
Transmission Typehydrostatic
Number of Forward Gears3
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped1.90 yd³
Dump Clearance at Max Raise108 in
Bucket Width89 in
