John Deere

460E

Off-Highway Truck

Operating Weight
71,024 lb
Max Speed
34.0 mph
Net Power
481.0 hp
All off-highway trucks

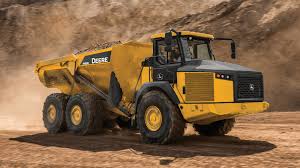

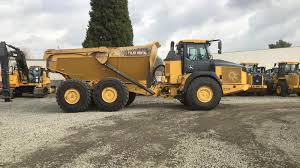

John Deere 460E Off-Highway Truck
1 / 5
Image 1 of 5
Image: wstsusedequipment.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity161.0 gal
Tire Size29.5R25

Engine

Engine specifications
Engine ModelPowerTech 6135
Net Power481.0 hp
Aspiration1771
MakeDeere PowerTech

Weights

Weights specifications
Operating Weight71,024 lb
Gross Weight163,224 lb

Dimensions

Dimensions specifications
Wheelbase350 in
Overall Length426 in
Overall Width135 in
Overall Height154 in

Transmission

Transmission specifications
Max Speed34.0 mph
Transmission TypeAuto
Number of Forward Gears8
Number of Reverse Gears4

General Specifications

General Specifications specifications
Operating Weight lbs (kg)71,028 (32,218) — Starting 2019 Model Year
Engine typeJohn Deere PowerTech 6135 FT4 engine — Starting 2019 Model Year
Articulated/RigidA — Starting 2019 Model Year
Drive Configuration6x6 — Starting 2019 Model Year
Rated Payload Tons (Metric Tons)46.1 (41.8) — Starting 2019 Model Year
Mfg. Model460E — Starting 2019 Model Year
Drive System Mech/Electr.M — Starting 2019 Model Year

Drive System

Drive System specifications
Drive Config6x6

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidArticulated

Dump

Dump specifications
Rated Payload101,633 lb
Dump Angle70 °
Raise Time20.0 s
Lower Time10.0 s
Capacity - Heaped33.41 yd³
Capacity - Struck26.90 yd³
