John Deere

50 ZTS

Mini Excavator

Operating Weight
10,565 lb
Max Digging Depth
143 in
Net Power
38.0 hp
All mini excavators

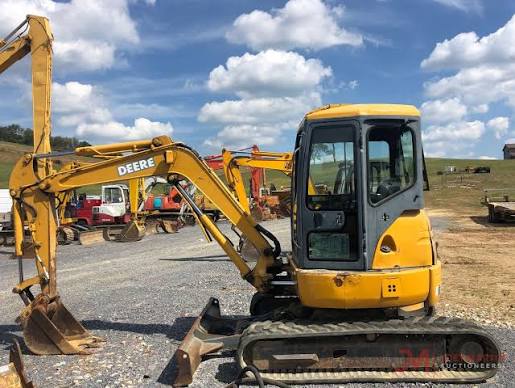

John Deere 50 ZTS Mini Excavator
1 / 5
Image 1 of 5
Image: global-ce.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,565 lb
Fuel Capacity13.2 gal
Hydraulic Pump Flow Capacity21.9 gal/min
Hydraulic System Fluid Capacity11.8 gal
Operating Voltage12 V
Alternator Supplied Amperage35 A

Engine

Engine specifications
Engine Model4LE1
Displacement133 in³
Net Power38.0 hp

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab103 in
Tail Swing Radius40 in
Width to Outside of Tracks79 in
Removal Counterweight Clearance24 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Max Travel Speed2.8 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth143 in
Max Reach Along Ground229 in
Max Vertical Wall Digging Depth106 in
Max Loading Height138 in
Shipping Length of Unit210 in
Max Cutting Height204 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed7 rpm
