John Deere
544B
- Operating Weight
- 21,775 lb
- Bucket Capacity - heaped
- 1.80 yd³
- Gross Power
- 115.0 hp
- Net Power
- 105.0 hp
1 / 5

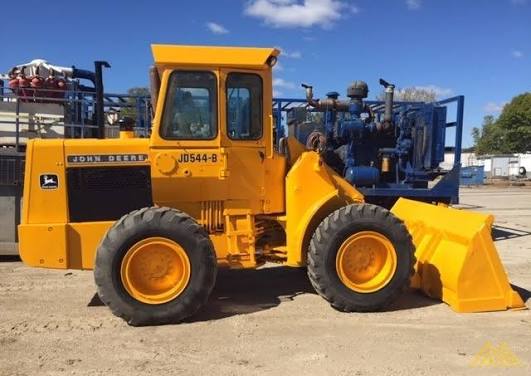

Image 1 of 5
Specifications
39 data points
Operating Specifications
| Operating Weight | 21,775 lb |
|---|---|
| Fuel Capacity | 40.0 gal |
| Tire Size | 17.5- 25 |
| Hydraulic System Fluid Capacity | 12.0 gal |
| Static Tipping Weight | 16,395 lb |
| Operating Voltage | 12 V |
| Turning Radius | 167 in |
| Engine Oil Fluid Capacity | 5.0 gal |
| Rear Axle Oscillation | 22 ° |
| Front Axle/Diff Fluid Capacity | 6.0 gal |
| Rear Axle/Diff Fluid Capacity | 6.3 gal |
| Cooling System Fluid Capacity | 8.1 gal |
| Transmission Fluid Capacity | 9.8 gal |
Engine
| Displacement | 414 in³ |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 115.0 hp |
| Net Power | 105.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 44.5 gal/min |
|---|---|
| Relief Valve Setting | 2,250 psi |
| Pump Type | Engine driven vane |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 121 in |
| Wheelbase | 80 in |
| Reach at Max Lift and Dump | 35 in |
| Length with Bucket on Ground | 231 in |
| Hinge Pin - Max Height | 135 in |
Transmission
| Max Speed - Forward | 25.0 mph |
|---|---|
| Max Speed - Reverse | 10.0 mph |
| Transmission Type | Powershift planetary |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 1.80 yd³ |
|---|---|
| Bucket Capacity - struck | 1.50 yd³ |
| Dump Clearance at Max Raise | 107 in |
| Breakout Force | 17,885 lb |
| Bucket Width | 93 in |
