Mecalac

AS 700

Wheel Loader

Operating Weight
13,184 lb
Net Power
75.0 hp
All wheel loaders

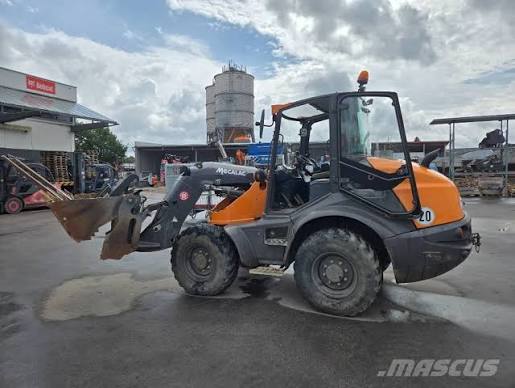

Mecalac AS 700 Wheel Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,184 lb
Fuel Capacity34.4 gal
Tire Size14.5-20
Hydraulic System Fluid Capacity35.4 gal
Operating Voltage12 V
Engine Oil Fluid Capacity2.2 gal
Rear Axle Oscillation10 °
Front Axle/Diff Fluid Capacity3.0 gal
Rear Axle/Diff Fluid Capacity3.2 gal
Steering Angle35 °

Engine

Engine specifications
Engine ModelTCD 29 L4
Power Measured @2,600 rpm
Net Power75.0 hp
Torque Measured @1,600 rpm
Alternator120 A
Battery95 Ah

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab109 in
Wheelbase78 in
Length with Bucket on Ground220 in
Hinge Pin - Max Height130 in
Turning Radius137 in

Transmission

Transmission specifications
Max Speed - Forward12.5 mph

Bucket

Bucket specifications
Breakout Force—
Tipping load Standard bucket7,165 lb
Dumping angle, top45 °
Lifting force4600 newton
Payload on forks, max. turned, frontal4,299 lb
Thrust force4500 newton
Payload on forks, max. turned, max. swivelled4,299 lb
Tilting angle45 °
Tipping load Standard bucket, max. turned, 907,275 lb
