Michigan

L30

Wheel Loader

Operating Weight
13,100 lb
Bucket Capacity - heaped
0.80 yd³
Gross Power
74.0 hp
Net Power
77.0 hp
All wheel loaders

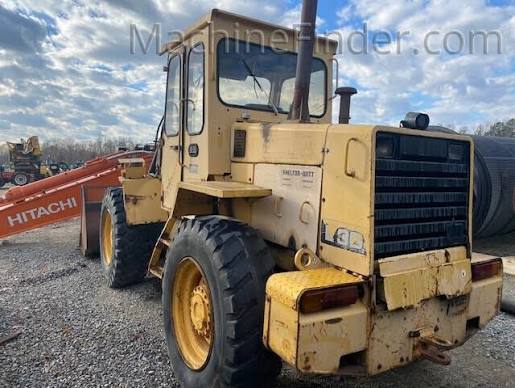

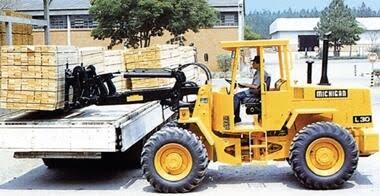

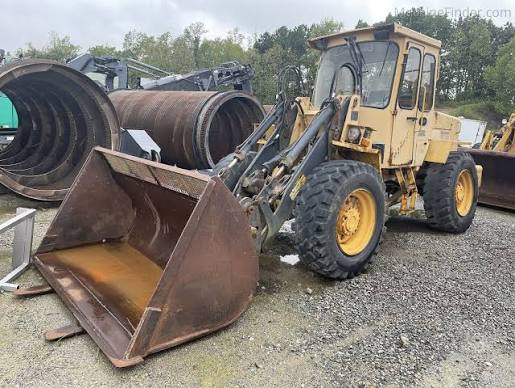

Michigan L30 Wheel Loader
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

51 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,100 lb
Fuel Capacity25.1 gal
Tire Size15.5-25 L-2
Hydraulic System Fluid Capacity2.7 gal
Operating Voltage24 V
Turning Radius204 in
Rear Axle Oscillation20 °
Alternator Supplied Amperage45 A
Cooling System Fluid Capacity27.8 gal
Transmission Fluid Capacity6.4 gal
Engine Oil Capacity2.2 gal
Static Tipping Load - Bucket8,135 lb
Front Diff Fluid Capacity5.9 gal
Rear Diff Fluid Capacity2.7 gal
Static Tipping Load - Forks9,722 lb
Static Tipping Load - Material Handler3,157 lb

Engine

Engine specifications
Engine Model4.236
Displacement236 in³
Power Measured @2,200 rpm
Gross Power74.0 hp
Net Power77.0 hp
Number of Cylinders4
Aspirationdirect injectio
Torque Measured @1,400 rpm
Max Torque204 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity27.2 gal/min
Raise Time5.4 s
Lower Time2.2 s
Dump Time1.3 s
Relief Valve Setting2,175 psi
Pump Typegear type

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab110 in
Wheelbase108 in
Width Over Tires79 in
Hinge Pin - Max Height142 in
Reach at Max Height and Dump30 in
Length w/ Bucket on Ground221 in
Dump Clearance at Max Lift111 in
Max Lift Height137 in
Fork Tine Length42 in
Length with out Forks on Ground227 in
Height at Hook Max Reach59 in

Transmission

Transmission specifications
Max Speed - Forward21.9 mph
Max Speed - Reverse21.9 mph
Transmission TypeClark 18000 Series constant mesh automatic powershift transmission
Number of Forward Gears3
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped0.80 yd³
Bucket Capacity - struck0.90 yd³
Breakout Force12,320 lb
