John Deere

544E

Wheel Loader

Operating Weight
23,618 lb
Bucket Capacity - heaped
2.20 yd³
Gross Power
120.0 hp
Net Power
115.0 hp
All wheel loaders

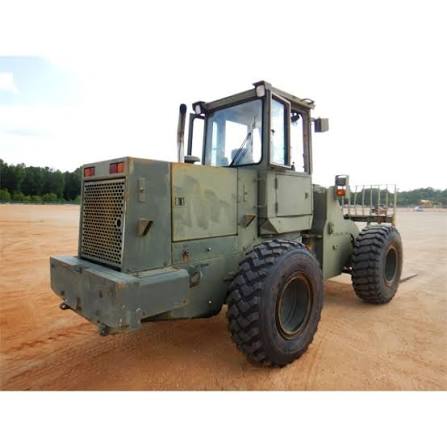

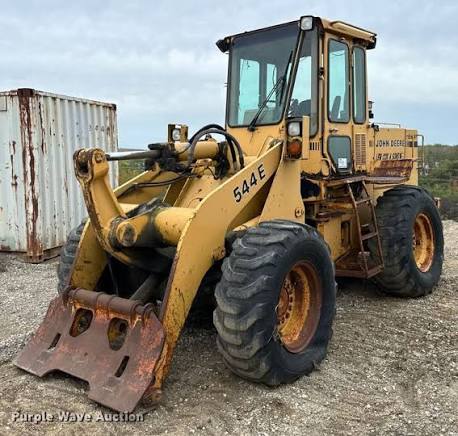

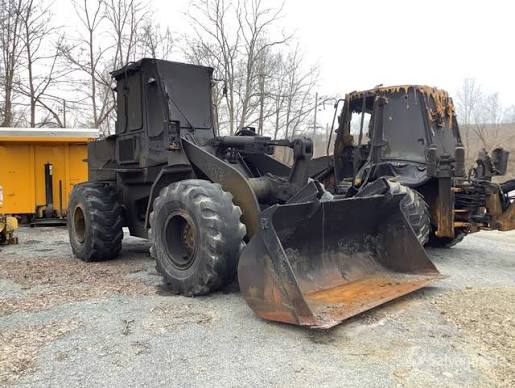

John Deere 544E Wheel Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight23,618 lb
Fuel Capacity55.0 gal
Tire Size17.5-25
Hydraulic System Fluid Capacity20.1 gal
Static Tipping Weight14,872 lb
Operating Voltage12 V
Turning Radius196 in
Engine Oil Fluid Capacity5.1 gal
Rear Axle Oscillation22 °
Alternator Supplied Amperage65 A
Front Axle/Diff Fluid Capacity4.3 gal
Rear Axle/Diff Fluid Capacity4.3 gal
Cooling System Fluid Capacity6.4 gal
Transmission Fluid Capacity2.6 gal

Engine

Engine specifications
Engine Model6059T
Displacement359 in³
Power Measured @2,200 rpm
Gross Power120.0 hp
Net Power115.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,500 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity46.3 gal/min
Raise Time5.8 s
Lower Time3.2 s
Dump Time1.4 s
Relief Valve Setting2,750 psi
Pump TypeGear Pump

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab125 in
Wheelbase115 in
Width Over Tires96 in
Reach at Max Lift and Dump33 in
Length with Bucket on Ground271 in
Hinge Pin - Max Height148 in

Transmission

Transmission specifications
Max Speed - Forward24.6 mph
Max Speed - Reverse17.2 mph
Transmission TypePowershift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.20 yd³
Bucket Capacity - struck1.80 yd³
Dump Clearance at Max Raise110 in
Breakout Force22,491 lb
Bucket Width101 in
