JCB
Case
21D
Wheel Loader
43 specifications
1 / 5

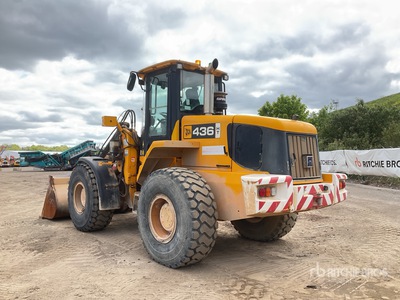

Image 1 of 5
Specifications
45 data points
Operating Specifications
| Static Tipping Weight | 14,266 lb |
|---|---|
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 3.7 gal |
| Rear Axle Oscillation | 21 ° |
| Alternator Supplied Amperage | 70 A |
| Front Axle/Diff Fluid Capacity | 10.4 gal |
| Rear Axle/Diff Fluid Capacity | 10.4 gal |
| Engine Oil Capacity | 3.7 gal |
| Static Tipping Load - Bucket | 16,905 lb |
| Front Diff Fluid Capacity | 10.3 gal |
| Rear Diff Fluid Capacity | 10.3 gal |
| Static Tipping Load - Forks | 11,967 lb |
Engine
| Engine Model | BTAA 5.9C |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 177.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 580 lb-ft |
Hydraulic System
| Raise Time | 5.9 s |
|---|---|
| Lower Time | 3.4 s |
| Dump Time | 1.0 s |
| Relief Valve Setting | 3,625 psi |
| Pump Type | Twin variable displacement piston pumps |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Wheelbase | 119 in |
| Width Over Tires | 103 in |
| Reach at Max Lift and Dump | 47 in |
| Length with Bucket on Ground | 305 in |
| Hinge Pin - Max Height | 197 in |
| Length w/ Bucket on Ground | 287 in |
| Dump Clearance at Max Lift | 166 in |
| Reach at Max Height and Dump | 43 in |
| Max Lift Height | 199 in |
| Fork Tine Length | 49 in |
Transmission
| Max Speed - Forward | 24.3 mph |
|---|---|
| Max Speed - Reverse | 16.5 mph |
| Transmission Type | smooth shift powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.10 yd³ |
|---|---|
| Dump Clearance at Max Raise | 159 in |
| Breakout Force | 34,396 lb |
| Bucket Width | 108 in |
