John Deere

544GH

Wheel Loader

Operating Weight
23,677 lb
Bucket Capacity - heaped
2.50 yd³
Gross Power
130.0 hp
Net Power
125.0 hp
All wheel loaders

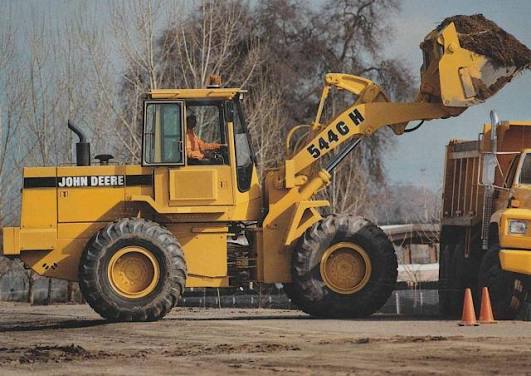

John Deere 544GH Wheel Loader
1 / 5
Image 1 of 5
Image: murphytractor.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight23,677 lb
Fuel Capacity57.6 gal
Tire Size17.5-25
Hydraulic System Fluid Capacity6.4 gal
Static Tipping Weight17,895 lb
Operating Voltage12 V
Turning Radius196 in
Engine Oil Fluid Capacity5.1 gal
Rear Axle Oscillation22 °
Alternator Supplied Amperage95 A
Front Axle/Diff Fluid Capacity5.1 gal
Rear Axle/Diff Fluid Capacity5.1 gal
Cooling System Fluid Capacity6.4 gal
Transmission Fluid Capacity2.6 gal

Engine

Engine specifications
Engine Model6059T
Displacement359 in³
Power Measured @2,200 rpm
Gross Power130.0 hp
Net Power125.0 hp
Number of Cylinders6
AspirationTurbocharger
Torque Measured @1,400 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity46.3 gal/min
Raise Time5.8 s
Lower Time3.2 s
Dump Time1.4 s
Relief Valve Setting2,750 psi
Pump TypeGear Type

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab127 in
Wheelbase115 in
Width Over Tires96 in
Reach at Max Lift and Dump37 in
Length with Bucket on Ground272 in
Hinge Pin - Max Height150 in

Transmission

Transmission specifications
Max Speed - Forward23.8 mph
Max Speed - Reverse16.9 mph
Transmission TypePower Shift w/ Torque Converter
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.50 yd³
Bucket Capacity - struck2.20 yd³
Dump Clearance at Max Raise113 in
Breakout Force22,207 lb
Bucket Width101 in
