John Deere

644H Waste Handler

Wheel Loader

Operating Weight
50,627 lb
Bucket Capacity - heaped
5.00 yd³
Gross Power
205.0 hp
Net Power
180.0 hp
All wheel loaders

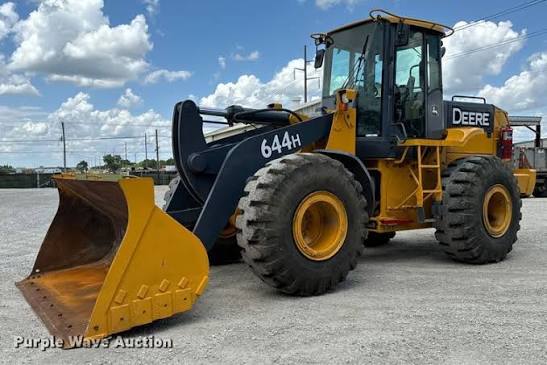

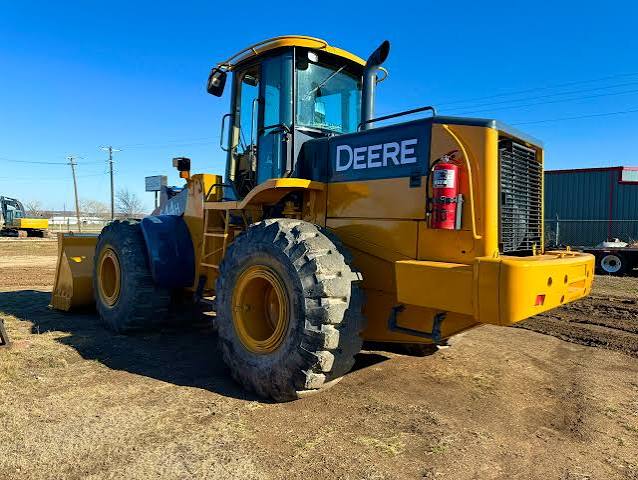

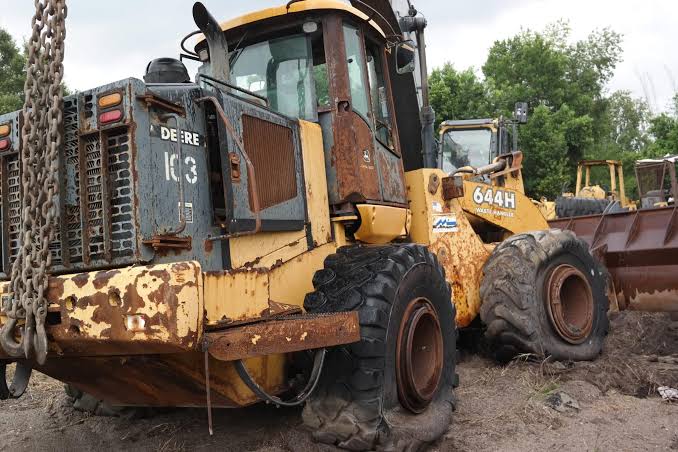

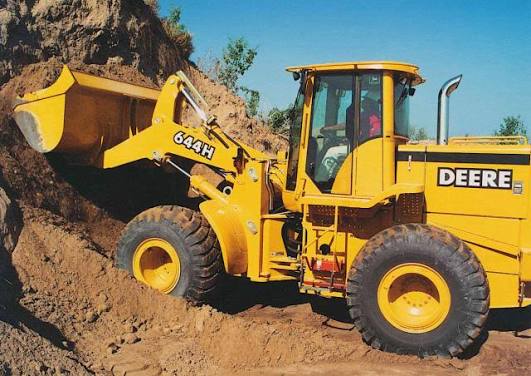

John Deere 644H Waste Handler Wheel Loader
1 / 5
Image 1 of 5
Image: 4riversequipment.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight50,627 lb
Fuel Capacity90.0 gal
Tire Size23.5-25
Hydraulic System Fluid Capacity31.0 gal
Static Tipping Weight32,857 lb
Operating Voltage24 V
Turning Radius217 in
Engine Oil Fluid Capacity6.7 gal
Rear Axle Oscillation18 °
Alternator Supplied Amperage55 A
Front Axle/Diff Fluid Capacity7.2 gal
Rear Axle/Diff Fluid Capacity7.2 gal
Cooling System Fluid Capacity7.7 gal
Transmission Fluid Capacity6.9 gal

Engine

Engine specifications
Engine Model6081H
Displacement496 in³
Power Measured @2,200 rpm
Gross Power205.0 hp
Net Power180.0 hp
Number of Cylinders6
AspirationTurbocharger with Aftercooler
Torque Measured @1,300 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity68.0 gal/min
Raise Time6.2 s
Lower Time3.0 s
Dump Time1.4 s
Relief Valve Setting3,600 psi
Pump TypePiston Pump

Dimensions

Dimensions specifications
Ground Clearance22 in
Height - Top of Cab137 in
Wheelbase126 in
Width Over Tires114 in
Reach at Max Lift and Dump74 in
Length with Bucket on Ground320 in
Hinge Pin - Max Height183 in

Transmission

Transmission specifications
Max Speed - Forward17.1 mph
Max Speed - Reverse17.8 mph
Transmission TypePower Shift
Number of Forward Gears3
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped5.00 yd³
Bucket Capacity - struck4.39 yd³
Dump Clearance at Max Raise151 in
Breakout Force37,606 lb
Bucket Width128 in
