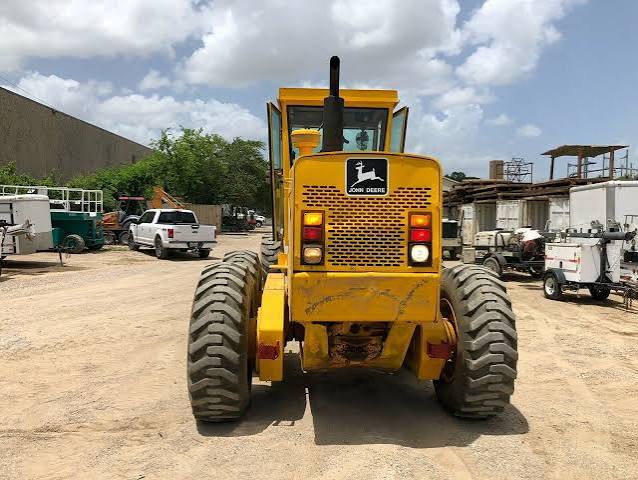

John Deere
Champion
730A
Motor Grader
53 specifications
/filters:autojpg()/filters:quality(40)/filters:extract_focal()/filters:format(webp)/mdl-john-deere-motor-grader-670b-a62db861-2.JPG)
1 / 5
Image 1 of 5
Specifications
57 data points
Operating Specifications
| Max Operation Weight - Total | 33,310 lb |
|---|---|
| Max Operation Weight - Front Axle | 9,870 lb |
| Max Operation Weight - Rear Axle | 23,440 lb |
| Std Operation Weight - Total | 29,030 lb |
| Tire Size | 13.00-25 |
| Fuel Capacity | 70.0 gal |
| Std Operation Weight - Front Axle | 8,620 lb |
| Std Operation Weight - Rear Axle | 20,410 lb |
| Hydraulic System Fluid Capacity | 14.0 gal |
| Tandem Case Fluid Capacity (each) | 5.0 gal |
| Operating Voltage | 24 V |
| Cooling System Fluid Capacity | 7.0 gal |
| Alternator Supplied Amperage | 42 A |
| Circle Gearbox Fluid Capacity | 3.0 gal |
| Oil System Fluid Capacity | 5.0 gal |
Engine
| Engine Model | 6068T |
|---|---|
| Displacement | 414 in³ |
| Power Measured @ | 2,300 rpm |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
| Max Power | 135.0 hp |
| Net Power Gears 7-8 | 135.0 hp |
| Net Torque Gears 7-8 | 460 lb-ft |
Hydraulic System
| Pump Flow | 37.6 gal/min |
|---|---|
| Pump Type | variable displacement single hydraulic pump |
Dimensions
| Wheelbase | 235 in |
|---|---|
| Overall Length | 328 in |
| Width Over Tires | 95 in |
| Height to Top of Isomount Cab | 121 in |
| Blade Base | 106 in |
| Tandem Axle Wheelbase | 61 in |
| Front Ground Clearance | 23 in |
Transmission
| Max Speed - Forward | 24.4 mph |
|---|---|
| Max Speed - Reverse | 8.2 mph |
| Number of Gears - Forward | 8 |
| Number of Gears - Reverse | 4 |
| Transmission Type | Power Shift |
Moldboard
| Moldboard Height | 24 in |
|---|---|
| Moldboard Width | 144 in |
| Moldboard Thickness | 1 in |
| Side Shift Left | 27 in |
| Side Shift Right | 27 in |
Circle
| Max Lift Above Ground | 18 in |
|---|---|
| Max Reach Outside Tires - Left | 85 in |
| Max Reach Outside Tires - Right | 83 in |
| Diameter | 60 in |
| Blade Tip Angle - Front | 49 ° |
| Rotation | 360 ° |
| Blade Tip Angle - Rear | 5 ° |
| Shift Left | 31 in |
| Shift Right | 29 in |
Front Axle
| Wheel Lean | 20 ° |
|---|---|
| Oscillation - Total | 32 ° |
| Ground Clearance | 23 in |
Steering System
| Turning Radius | 264 in |
|---|---|
| Articulation Angle | 25 ° |
