John Deere

670CH

Motor Grader

Max Operation Weight - Total
35,430 lb
Max Power
185.0 hp
Net Power Gears 7-8
185.0 hp
Net Power Gear 5-6
185.0 hp
All motor graders

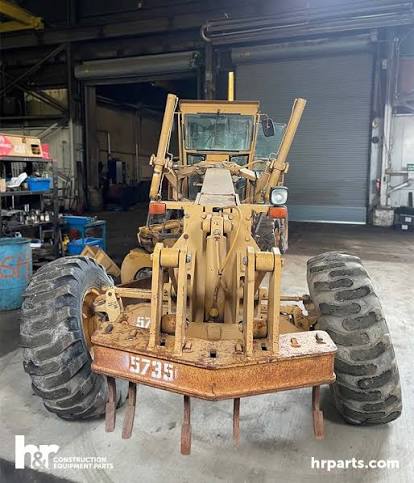

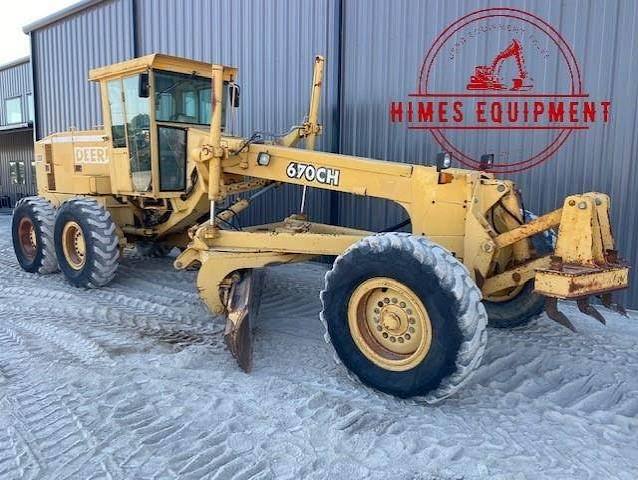

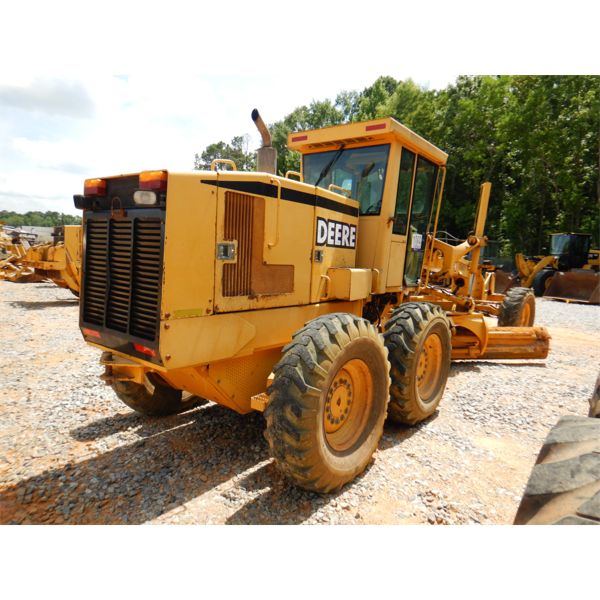

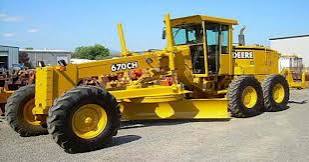

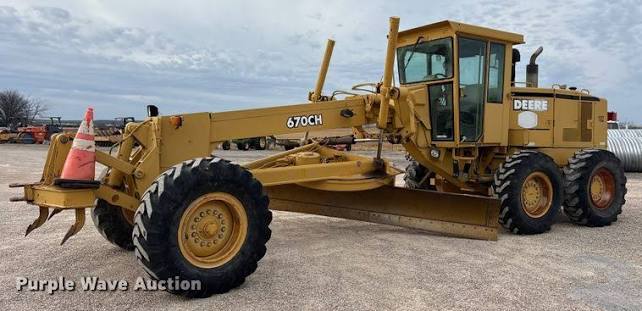

John Deere 670CH Motor Grader
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

67 data points

Operating Specifications

Operating Specifications specifications
Max Operation Weight - Total35,430 lb
Max Operation Weight - Front Axle9,760 lb
Max Operation Weight - Rear Axle25,670 lb
Std Operation Weight - Total30,700 lb
Tire Size13.00-24
Fuel Capacity106.0 gal
Std Operation Weight - Front Axle8,640 lb
Std Operation Weight - Rear Axle22,060 lb
Hydraulic System Fluid Capacity15.5 gal
Tandem Case Fluid Capacity (each)20.0 gal
Operating Voltage24 V
Cooling System Fluid Capacity11.0 gal
Alternator Supplied Amperage55 A
Transmission Fluid Capacity10.0 gal
Circle Gearbox Fluid Capacity4.0 gal
Rear Diff/Final Drive Fluid Capacity9.5 gal
Oil System Fluid Capacity6.4 gal

Engine

Engine specifications
Engine Model6068H
Displacement414 in³
Power Measured @2,000 rpm
Number of Cylinders6
AspirationTurbocharged with Aftercooler
Torque Measured @1,000 rpm
Max Power185.0 hp
Net Power Gears 7-8185.0 hp
Net Torque Gears 7-8625 lb-ft
Net Power Gear 5-6185.0 hp
Net Power Gear 1-2145.0 hp
Net Power Gear 4-6165.0 hp
Net Torque Gears 5-6625 lb-ft
Net Torque Gears 1-2554 lb-ft
Net Torque Gears 3-4611 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow45.6 gal/min
Pump TypeCLosed Center Variable Displacement
Relief Valve Pressure2,550 psi

Dimensions

Dimensions specifications
Wheelbase235 in
Overall Length339 in
Width Over Tires97 in
Height to Top of Isomount Cab122 in
Blade Base106 in
Tandem Axle Wheelbase61 in
Front Ground Clearance25 in

Transmission

Transmission specifications
Max Speed - Forward25.0 mph
Max Speed - Reverse25.0 mph
Number of Gears - Forward8
Number of Gears - Reverse8
Transmission TypePower Shift

Moldboard

Moldboard specifications
Moldboard Height24 in
Moldboard Width144 in
Moldboard Thickness1 in
Side Shift Left27 in
Side Shift Right27 in
Blade Pull at Max Weight24,428 lb

Circle

Circle specifications
Max Lift Above Ground18 in
Max Reach Outside Tires - Left85 in
Max Reach Outside Tires - Right83 in
Diameter60 in
Blade Tip Angle - Front49 °
Rotation360 °
Blade Tip Angle - Rear5 °
Shift Left31 in
Shift Right29 in

Front Axle

Front Axle specifications
Wheel Lean20 °
Oscillation - Total32 °
Ground Clearance288 in

Steering System

Steering System specifications
Turning Radius264 in
Articulation Angle25 °
