John Deere

710C

Backhoe Loader

Bucket Capacity
1.80 yd³
Max Speed
21.0 mph
Gross Power
120.0 hp
Net Power
115.0 hp
All backhoe loaders

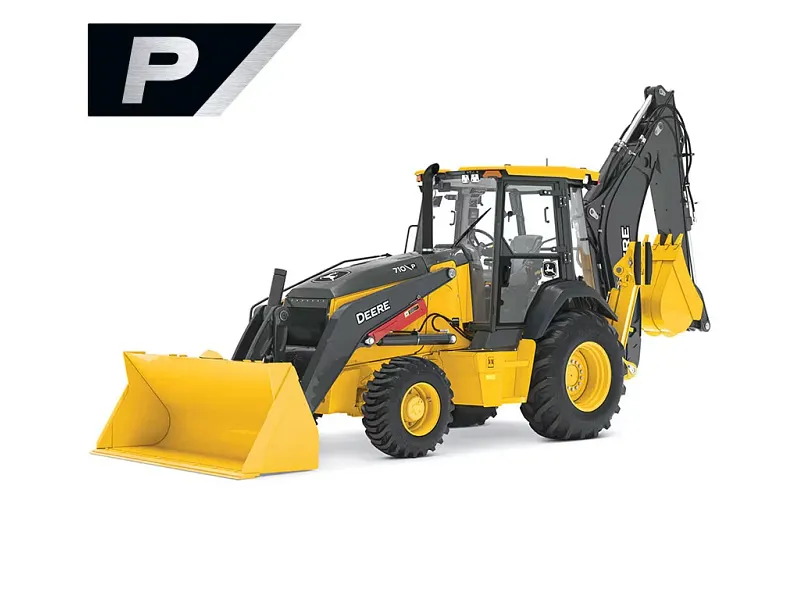

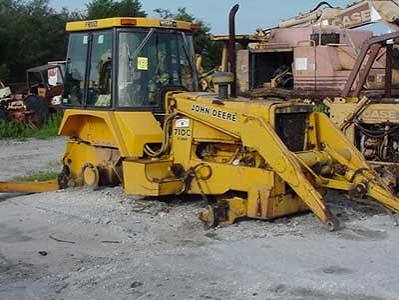

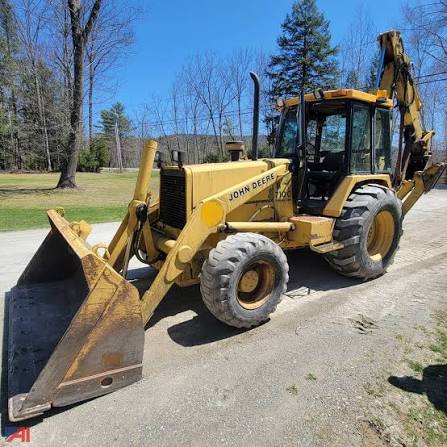

John Deere 710C Backhoe Loader
1 / 5
Image 1 of 5
Image: deere.com

Specifications

47 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity37.0 gal
Hydraulic System Fluid Capacity40.0 gal
Cooling System Fluid Capacity6.9 gal
Tire Size Front - 2wd / 4wd14.5/75-16.110PR F3
Operating Voltage12 V
Oil System Fluid Capacity5.1 gal
Alternator Supplied Amperage78 A
Turning Radius173 in
Transmission Fluid Capacity6.0 gal
Max Weight22,500 lb
Rear Axle Fluid Capacity4.5 gal

Engine

Engine specifications
Engine Model6059T
Displacement359 in³
Power Measured @2,200 rpm
Gross Power120.0 hp
Net Power115.0 hp
Number of Cylinders6
Net Max Torque343 lb-ft
Net Torque Rise0

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity53.0 gal/min
Relief Valve Pressure2,550 psi
Pump TypeRadial pistons

Dimensions

Dimensions specifications
Ground Clearance15 in
Wheelbase95 in
Transport Width97 in
Transport Length320 in
Height to Top of Suspended Cab107 in

Transmission

Transmission specifications
Max Speed21.0 mph
Max Speed - Reverse6.6 mph
Number of Forward Gears4
Number of Reverse Gears2
Transmission TypePowershift with modulated full power shifting between forward and reverse

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size21L-2416PR R4/20.5-2512PR R4

Backhoe

Backhoe specifications
Dig Depth216 in
Reach From Swivel272 in
Dig Depth - Extended274 in
Load Height - Extended180 in
Bucket Dig Force9,600 lb
Reach From Swivel - Extended180 in
Reach at Load Height - Extended374 in
Bucket Dig Force - Extended6,700 lb

Loader

Loader specifications
Bucket Capacity1.80 yd³
Clearance at Max Dump Height115 in
Bucket Breakout Force13,560 lb
Bucket Width96 in
Reach at Max Dump Height30 in
Dig Depth4 in
