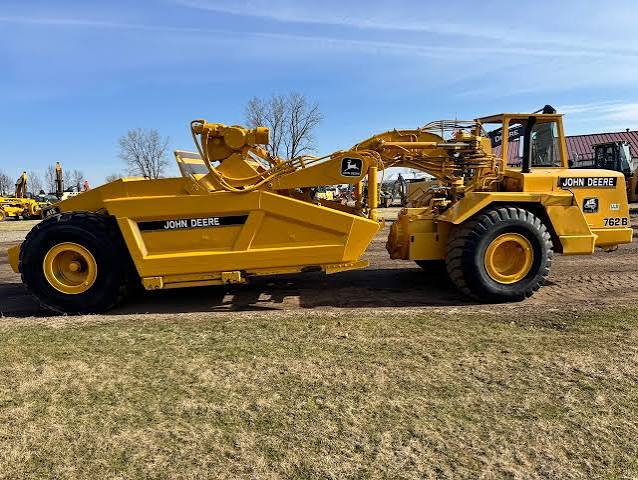

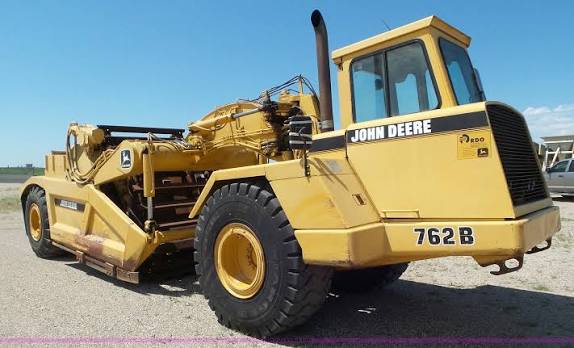

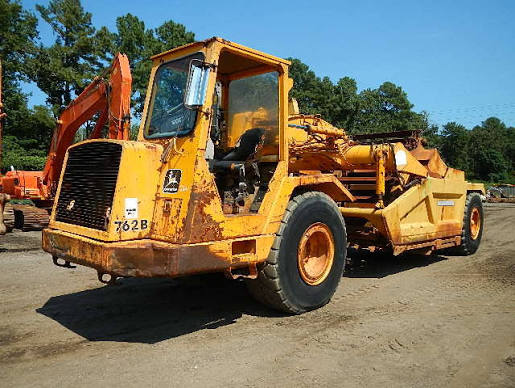

John Deere
762B Series II
- Net Power
- 180.0 hp
- Gross Power
- 190.0 hp
- Max Speed - Forward
- 25.5 mph
- Max Speed - Reverse
- 4.5 mph
1 / 5
Image 1 of 5
Specifications
38 data points
Operating Specifications
| Fuel Capacity | 87.0 gal |
|---|---|
| Tire Size | 23.5-25 |
| Cooling System Fluid Capacity | 9.0 gal |
| Transmission Fluid Capacity | 13.0 gal |
| Hydraulic System Fluid Capacity | 22.0 gal |
| Operating Voltage | 24 V |
| Differential Fluid Capacity | 8.3 gal |
| Alternator Supplied Amperage | 80 A |
| Engine Oil Capacity | 7.6 gal |
Weights
| Total Operating - empty | 35,600 lb |
|---|---|
| Total Operating - Loaded | 63,200 lb |
| Front Axle - empty | 22,900 lb |
| Rear Axle - empty | 12,700 lb |
| Front Axel - loaded | 32,200 lb |
| Rear Axle - loaded | 31,000 lb |
Dimensions
| Wheelbase | 245 in |
|---|---|
| Overall Length | 397 in |
| Overall Width | 97 in |
| Overall Height | 111 in |
| Height to Top of Suspended Cab | 119 in |
| Tractor Ground Clearance | 23 in |
Transmission
| Max Speed - Forward | 25.5 mph |
|---|---|
| Max Speed - Reverse | 4.5 mph |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 1 |
| Transmission Type | planetary |
Bowl
| Heaped Capacity | 11.60 yd³ |
|---|---|
| Width of Cut | 91 in |
| Max Depth of Cut | 7 in |
Tractor Engine
| Net Power | 180.0 hp |
|---|---|
| Gross Power | 190.0 hp |
| Displacement | 496 in³ |
| Make | John Deere |
| Power Measured @ | 2,100 rpm |
| Aspiration | turbocharged and aftercooled |
Elevator
| Number of Flights | 18 |
|---|---|
| Length of Flights | 67 in |
| Max Working Speed | 2.4 mph |
