John Deere

770D

Processor

Operating Weight
25,460 lb
Gross Power
115.4 hp
All processors/harvesters

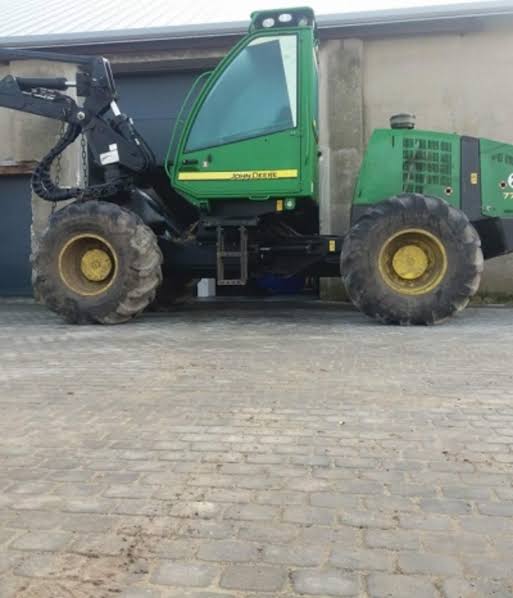

John Deere 770D Processor
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight25,460 lb
Max Speed15.5 mph
Fuel Capacity66.0 gal
Operating Voltage24 V
Alternator Supplied Amperage140 A
Hydraulic System Fluid Capacity44.9 gal
Cooling System Fluid Capacity8.2 gal

Engine

Engine specifications
Engine Model4045HTJ
Displacement275 in³
Power Measured @2,000 rpm
Gross Power115.4 hp
Number of Cylinders4
AspirationTurbocharged
Torque Measured @1,300 rpm
Max Torque367 lb-ft

Dimensions

Dimensions specifications
Height - Top of Cab143 in
Wheelbase138 in
Overall Width95 in

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Ground Clearance23 in

Boom

Boom specifications
Max Reach w/ Head312 in

Drive System

Drive System specifications
Tire Size - front650 x 26.5 12 PR TRS NK
Tire Size - rear650 x 26.5 12 PR TRS NK
