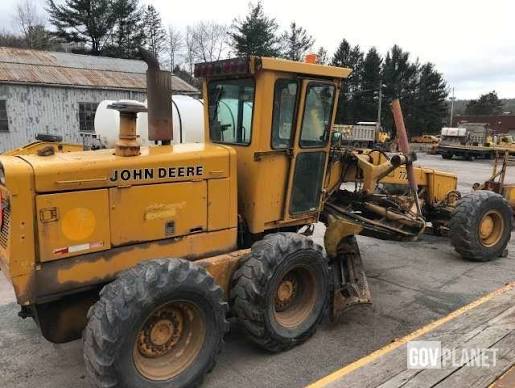

John Deere
Champion
730A
Motor Grader
53 specifications
1 / 5
Image 1 of 5
Specifications
57 data points
Operating Specifications
| Max Operation Weight - Total | 34,492 lb |
|---|---|
| Max Operation Weight - Front Axle | 9,780 lb |
| Max Operation Weight - Rear Axle | 24,712 lb |
| Std Operation Weight - Total | 30,903 lb |
| Tire Size | 14.00-24 |
| Fuel Capacity | 70.0 gal |
| Std Operation Weight - Front Axle | 9,237 lb |
| Std Operation Weight - Rear Axle | 21,666 lb |
| Hydraulic System Fluid Capacity | 41.0 gal |
| Tandem Case Fluid Capacity (each) | 5.0 gal |
| Operating Voltage | 24 V |
| Cooling System Fluid Capacity | 7.0 gal |
| Alternator Supplied Amperage | 42 A |
| Circle Gearbox Fluid Capacity | 1.1 gal |
| Oil System Fluid Capacity | 5.0 gal |
Engine
| Engine Model | 6-466A |
|---|---|
| Displacement | 466 in³ |
| Power Measured @ | 2,300 rpm |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged with Intercooler |
| Torque Measured @ | 1,300 rpm |
| Max Power | 150.0 hp |
| Net Power Gears 7-8 | 150.0 hp |
| Net Torque Gears 7-8 | 465 lb-ft |
Hydraulic System
| Pump Flow | 36.0 gal/min |
|---|---|
| Pump Type | Closed Center Variable Displacement |
Dimensions
| Wheelbase | 235 in |
|---|---|
| Overall Length | 333 in |
| Width Over Tires | 97 in |
| Height to Top of Isomount Cab | 126 in |
| Blade Base | 108 in |
| Tandem Axle Wheelbase | 61 in |
| Front Ground Clearance | 23 in |
Transmission
| Max Speed - Forward | 25.1 mph |
|---|---|
| Max Speed - Reverse | 8.6 mph |
| Number of Gears - Forward | 8 |
| Number of Gears - Reverse | 4 |
| Transmission Type | Power Shift |
Moldboard
| Moldboard Height | 24 in |
|---|---|
| Moldboard Width | 144 in |
| Moldboard Thickness | 1 in |
| Side Shift Left | 27 in |
| Side Shift Right | 27 in |
Circle
| Max Lift Above Ground | 17 in |
|---|---|
| Max Reach Outside Tires - Left | 90 in |
| Max Reach Outside Tires - Right | 89 in |
| Diameter | 59 in |
| Blade Tip Angle - Front | 44 ° |
| Rotation | 360 ° |
| Blade Tip Angle - Rear | 10 ° |
| Shift Left | 34 in |
| Shift Right | 32 in |
Front Axle
| Wheel Lean | 20 ° |
|---|---|
| Oscillation - Total | 30 ° |
| Ground Clearance | 23 in |
Steering System
| Turning Radius | 271 in |
|---|---|
| Articulation Angle | 25 ° |
