John Deere

7775

Skid Steer Loader

Operating Weight
5,405 lb
Bucket Capacity
0.60 yd³
Max Speed
7.4 mph
All skid steer loaders

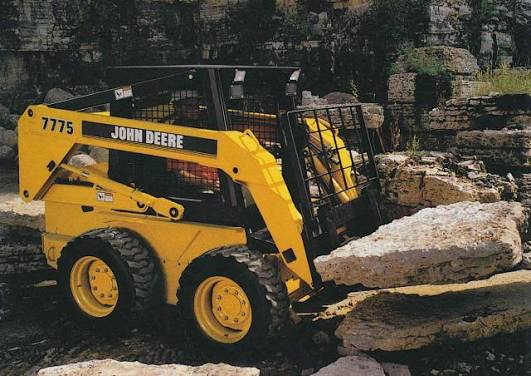

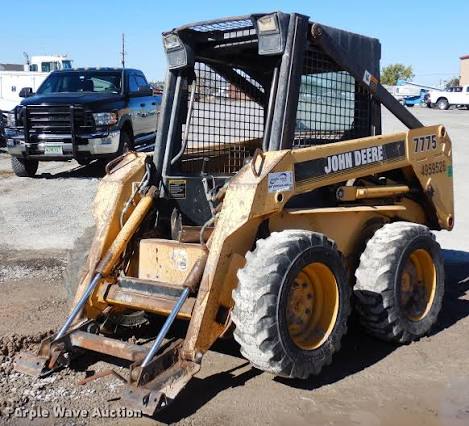

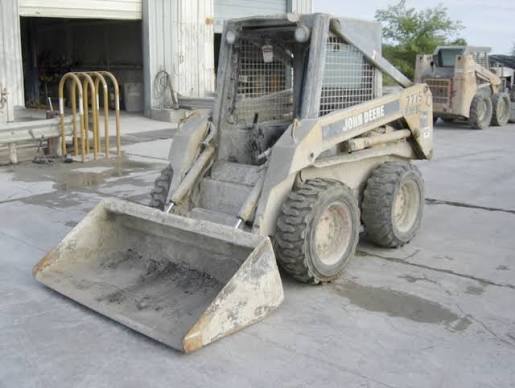

John Deere 7775 Skid Steer Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,405 lb
Max Speed7.4 mph
Fuel Capacity14.4 gal
Operating Voltage12 V
Alternator Supplied Amperage40 A
Operating Speed7.4 mph

Engine

Engine specifications
Engine ModelSeries 220
Displacement134 in³
Power Measured @3,000 rpm
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity17.0 gal/min
Relief Valve Pressure2,650 psi
Pump TypeOpen-center

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab76 in
Wheelbase43 in
Reach at Max Lift and Dump28 in
Length with Bucket127 in
Clearance at Max Lift and Dump91 in
Turning Radius from Center - inc bucket45 in
Turning Radius from Center - machine rear45 in
Length w/o Bucket102 in

Loader

Loader specifications
Bucket Capacity0.60 yd³
Operating Load Rating1,705 lb
Tipping Angle2,000 °
Breakout Force3,712 psi
