John Deere
Komatsu
WA30-1
Wheel Loader
27 specifications

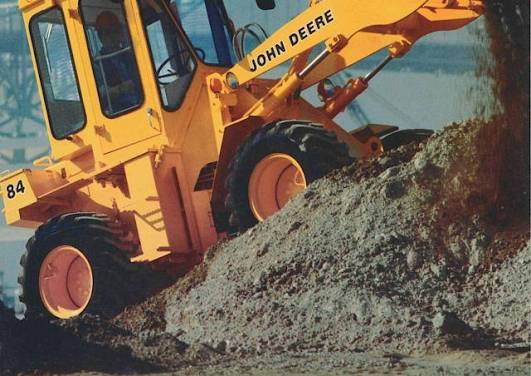

John Deere
84
- Operating Weight
- 11,246 lb
- Bucket Capacity - heaped
- 0.99 yd³
- Gross Power
- 55.0 hp
- Net Power
- 52.0 hp
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 11,246 lb |
|---|---|
| Fuel Capacity | 15.3 gal |
| Tire Size | 17.5/65-20 |
| Hydraulic System Fluid Capacity | 18.5 gal |
| Static Tipping Weight | 8,930 lb |
| Operating Voltage | 24 V |
| Turning Radius | 150 in |
| Engine Oil Fluid Capacity | 3.4 gal |
| Rear Axle Oscillation | 16 ° |
| Alternator Supplied Amperage | 25 A |
| Front Axle/Diff Fluid Capacity | 2.6 gal |
| Rear Axle/Diff Fluid Capacity | 2.6 gal |
| Cooling System Fluid Capacity | 5.3 gal |
| Transmission Fluid Capacity | 6.1 gal |
Engine
| Engine Model | 4TN100 |
|---|---|
| Displacement | 211 in³ |
| Gross Power | 55.0 hp |
| Net Power | 52.0 hp |
| Aspiration | Natural |
Hydraulic System
| Pump Flow Capacity | 21.1 gal/min |
|---|---|
| Raise Time | 5.4 s |
| Lower Time | 3.5 s |
| Dump Time | 1.0 s |
| Relief Valve Setting | 2,500 psi |
| Pump Type | Gear |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 114 in |
| Wheelbase | 88 in |
| Width Over Tires | 79 in |
| Length with Bucket on Ground | 183 in |
| Hinge Pin - Max Height | 120 in |
Transmission
| Max Speed - Forward | 17.7 mph |
|---|---|
| Max Speed - Reverse | 7.1 mph |
| Transmission Type | Powershiift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 1 |
Bucket
| Bucket Capacity - heaped | 0.99 yd³ |
|---|---|
| Bucket Capacity - struck | 0.90 yd³ |
| Dump Clearance at Max Raise | 138 in |
| Breakout Force | 9,040 lb |
| Bucket Width | 83 in |
