John Deere

853J

Feller Buncher

Operating Weight w/o Attachment
58,810 lb
Max Speed
2.6 mph
Displacement
492 in³
Gross Power
294.0 hp
All feller bunchers

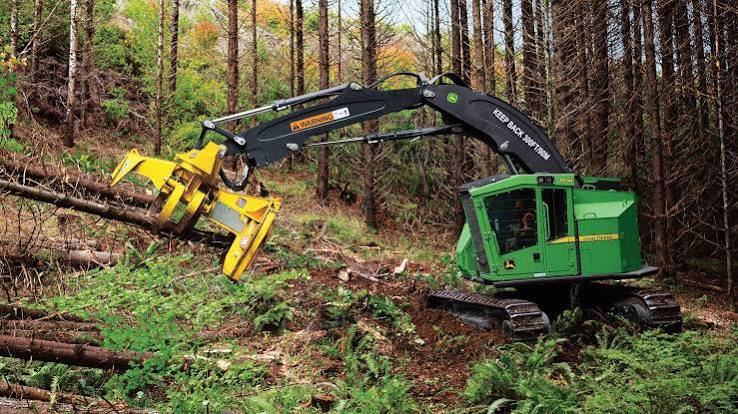

John Deere 853J Feller Buncher
1 / 5
Image 1 of 5
Image: deere.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment58,810 lb
Max Speed2.6 mph
Fuel Capacity295.0 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A
Hydraulic System Fluid Capacity82.0 gal
Cooling System Fluid Capacity11.0 gal
Engine Oil Capacity7.4 gal
Ground Pressure9 psi

Engine

Engine specifications
Engine Model6081H
Displacement492 in³
Power Measured @1,900 rpm
Gross Power294.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,500 rpm
Net Torque885 lb-ft

Dimensions

Dimensions specifications
Ground Clearance3 in
Height - Top of Cab150 in
Overall Width126 in
Length of Track on Ground133 in
Tail Swing Radius120 in
Max Reach331 in

Undercarriage

Undercarriage specifications
Track Gauge102 in
Number of Track Rollers per Side8
Shoe Size24 in
Track Pitch8 in
Tractive Effort55,700 lb

Boom

Boom specifications
Bare Pin Lift at Max Reach14,180 lb
Max Cut Radius331 in
Min Cut Radius198 in
