John Deere
Claas
Arion 630C
Tractor
20 specifications

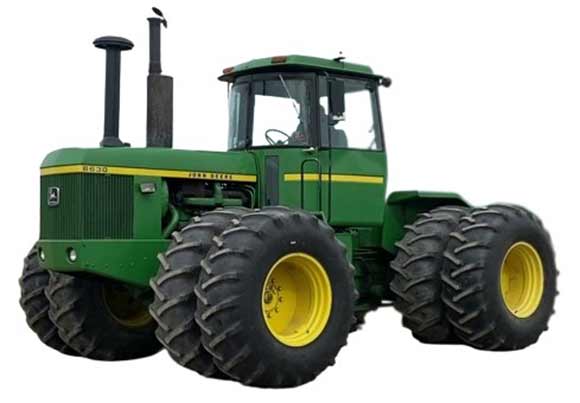

John Deere
8630
- Operating Weight
- 24,500 lb
- Displacement
- 616 in³
- Power Measured @
- 2,100 rpm
- Gross Power
- 275.0 hp
1 / 5
Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 24,500 lb |
|---|---|
| Fuel Capacity | 156.0 gal |
| 3 Point Hitch Type | III |
| Operating Voltage | 6 V |
| Cooling System Fluid Capacity | 11.0 gal |
| Hydraulic System Fluid Capacity | 26.0 gal |
| Front Tire Size | 18.4-34 |
| Rear Tire Size | 18.4-34 |
Engine
| Displacement | 616 in³ |
|---|---|
| Power Measured @ | 2,100 rpm |
| Gross Power | 275.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Engine Make | John Deere |
| PTO Power | 225.0 hp |
| Bore | 5 in |
| Stroke | 5 in |
Hydraulic System
| Pump Flow Capacity | 33.0 gal/min |
|---|---|
| Number of Remote Control Valves | 2 |
| Hydraulic System Type | Closed center constant pressure |
Dimensions
| Height - Top of Cab | 134 in |
|---|---|
| Wheelbase | 125 in |
| Overall Length | 223 in |
| Track Width | 96 in |
| Front Axle Clearance | 96 in |
| Shipping weight | 24,150 lb |
| Rear axle clearance | 96 in |
Transmission
| Max Speed - Reverse | 11.2 mph |
|---|---|
| Max Speed - Forward | 20.4 mph |
| Number of Forward Gears | 16 |
| Transmission Type | Partial power shift |
| Number of Reverse Gears | 4 |
