John Deere

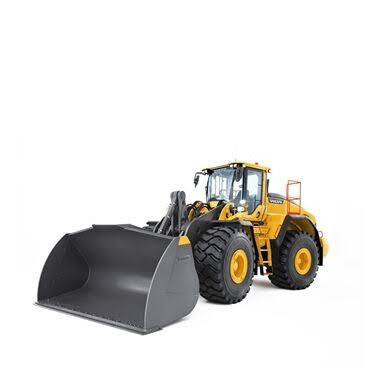

Volvo
L220H
Wheel Loader
58 specifications
1 / 5
Image 1 of 5
Specifications
35 data points
Operating Specifications
| Operating Weight | 117,947 lb |
|---|---|
| Fuel Capacity | 201.1 gal |
Engine
| Engine Model | PowerTech PSX 6135 |
|---|---|
| Displacement | 824 in³ |
| Engine Make | John Deere |
| Torque Rise | 23.0 % |
| Torque | 1,866 lb-ft |
| Alternator | 150 A |
| System Voltage | 24 V |
| Rated Speed | 1,600 rpm |
| Transmission Type | A/C Electric |
| Emission level | Interim Tier 4 |
| Pump | Axial Piston Pump |
| Engine Output-Net | 536.5 hp |
Dimensions
| Height - Top of Cab | 165 in |
|---|---|
| Wheelbase | 178 in |
| Width Over Tires | 148 in |
| Reach at Max Lift and Dump | 114 in |
| Length with Bucket on Ground | 461 in |
| Hinge Pin - Max Height | 211 in |
| Turning Circle | 703 in |
Transmission
| Pump Flow | 100.2 gal/min |
|---|---|
| System Pressure | 350 psi |
Fluid Capacities
| Hydraulic Tank | 99.9 gal |
|---|---|
| Transmission | 9.0 gal |
| Heaped Capacity | 10.10 yd³ |
Bucket
| Bucket Capacity - Smallest | 8.59 yd³ |
|---|---|
| Breakout Force | 103,388 lb |
| Largest bucket capacity | 10.10 yd³ |
Driveline
| Ride control system | Optional |
|---|---|
| Parking Brake Type | Wet Multi Disc |
| Service Brake - Location | All Wheels |
| Service Brake Actuation | Hydraulic |
| Service Brake Type | Wet Multi Disc |
| Tire size - Standard | 35 / 65 R33 |

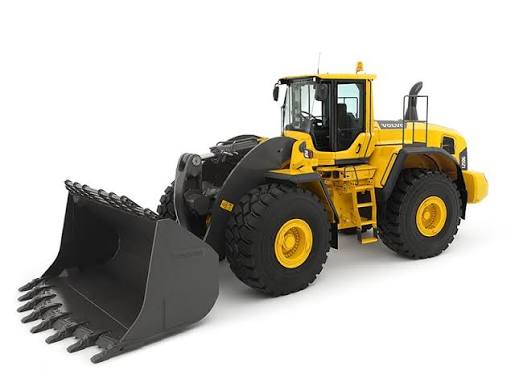

Comparable machines
