John Deere

953J

Feller Buncher

Operating Weight w/o Attachment
68,900 lb
Max Speed
2.5 mph
Displacement
492 in³
Gross Power
294.0 hp
All feller bunchers

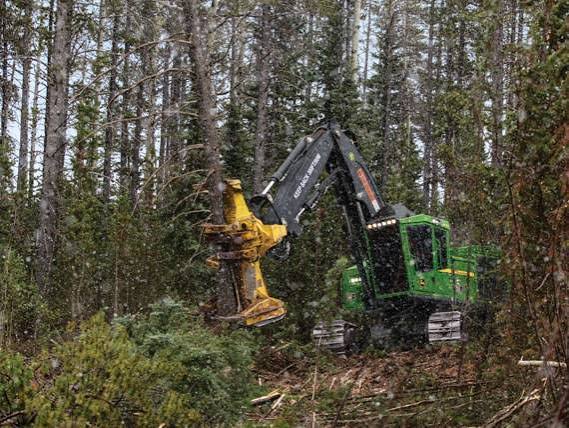

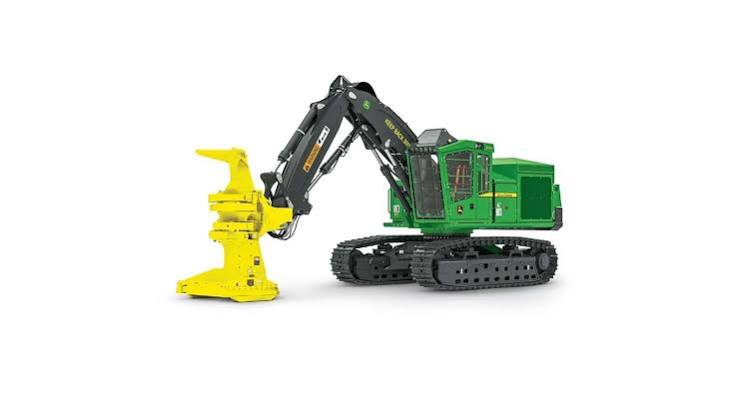

John Deere 953J Feller Buncher
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment68,900 lb
Max Speed2.5 mph
Fuel Capacity295.0 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A
Hydraulic System Fluid Capacity82.2 gal
Cooling System Fluid Capacity11.0 gal
Engine Oil Capacity7.4 gal
Ground Pressure10 psi

Engine

Engine specifications
Engine Model6081H
Displacement492 in³
Power Measured @1,900 rpm
Gross Power294.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,500 rpm
Net Torque885 lb-ft

Dimensions

Dimensions specifications
Ground Clearance3 in
Height - Top of Cab152 in
Overall Width126 in
Length of Track on Ground143 in
Tail Swing Radius127 in
Max Reach331 in

Undercarriage

Undercarriage specifications
Track Gauge101 in
Number of Track Rollers per Side9
Shoe Size24 in
Track Pitch9 in
Tractive Effort74,300 lb

Boom

Boom specifications
Bare Pin Lift at Max Reach18,000 lb
Max Cut Radius342 in
Min Cut Radius222 in
