John Deere
9570 STS
- Operating Weight w/o Attachment
- 29,945 lb
- Fuel Capacity
- 200.0 gal
- Displacement
- 415 in³
- Power
- 265.0 hp
1 / 5

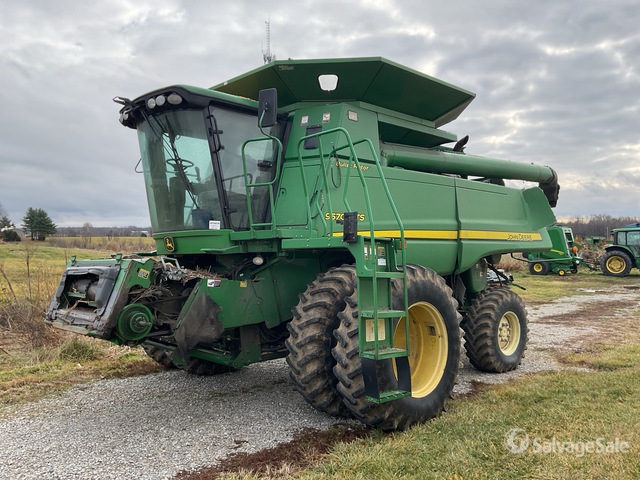

Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight w/o Attachment | 29,945 lb |
|---|---|
| Fuel Capacity | 200.0 gal |
Engine
| Displacement | 415 in³ |
|---|---|
| Power Measured @ | 2,300 rpm |
| Number of Cylinders | 6 |
| Power | 265.0 hp |
| Power Boost Power | 298.0 hp |
Cleaning System
| Total Cleaning Area | 5,503 in³ |
|---|---|
| Cleaning Fan Speed - High | 1,200 rpm |
| Cleaning Fan Speed - Low | 620 rpm |
Feeding
| Conveyor Width | 55 in |
|---|---|
| Conveyor Length | 68 in |
Grain Handling
| Grain Tank Capacity | 2,061.1 gal |
|---|---|
| Unloading Speed | 2.2 bu/sec |
| Unloading Discharge Height | 161 in |
| Unloading Auger Length | 222 in |
Separating
| Separating Area | 2,015 in³ |
|---|---|
| Separator Type | rotary |
| Discharge Grate Area | 465 in³ |
Threshing
| Rotor Diameter | 24 in |
|---|---|
| Rotor Length | 123 in |
| Rotor Speed - High | 1,300 rpm |
| Rotor Speed - Low | 230 rpm |
| Concave Area | 1,395 in³ |
