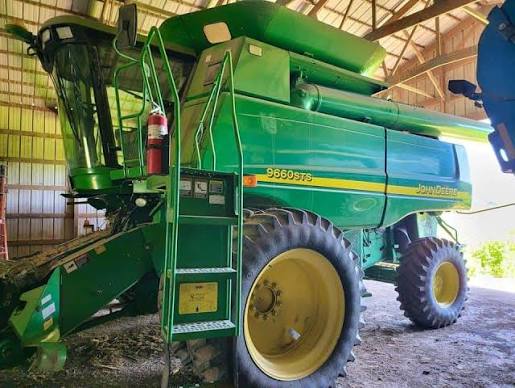

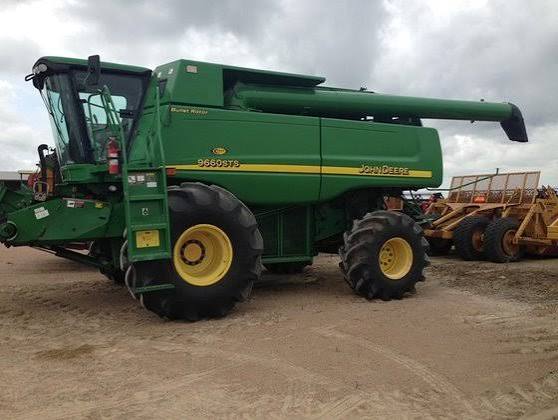

John Deere
9660 STS
- Operating Weight w/o Attachment
- 30,682 lb
- Fuel Capacity
- 249.7 gal
- Displacement
- 494 in³
- Power
- 304.5 hp
1 / 5
Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight w/o Attachment | 30,682 lb |
|---|---|
| Fuel Capacity | 249.7 gal |
Engine
| Displacement | 494 in³ |
|---|---|
| Power Measured @ | 2,200 rpm |
| Number of Cylinders | 6 |
| Power | 304.5 hp |
| Power Boost Power | 338.0 hp |
Cleaning System
| Total Cleaning Area | 7,099 in³ |
|---|---|
| Cleaning Fan Speed - High | 1,200 rpm |
| Cleaning Fan Speed - Low | 500 rpm |
Feeding
| Conveyor Width | 55 in |
|---|---|
| Conveyor Length | 68 in |
| Conveyor Speed | 520 rpm |
Grain Handling
| Grain Tank Capacity | 2,325.4 gal |
|---|---|
| Unloading Speed | 2.2 bu/sec |
| Unloading Discharge Height | 172 in |
| Unloading Auger Length | 257 in |
Separating
| Separating Area | 2,387 in³ |
|---|---|
| Separator Type | Rotary |
| Discharge Grate Area | 558 in³ |
Threshing
| Rotor Diameter | 30 in |
|---|---|
| Rotor Length | 123 in |
| Rotor Speed - High | 1,000 rpm |
| Rotor Speed - Low | 210 rpm |
| Concave Area | 1,705 in³ |
