John Deere
9660 WTS
- Operating Weight w/o Attachment
- 30,027 lb
- Fuel Capacity
- 184.2 gal
- Displacement
- 494 in³
- Power
- 305.0 hp
1 / 5

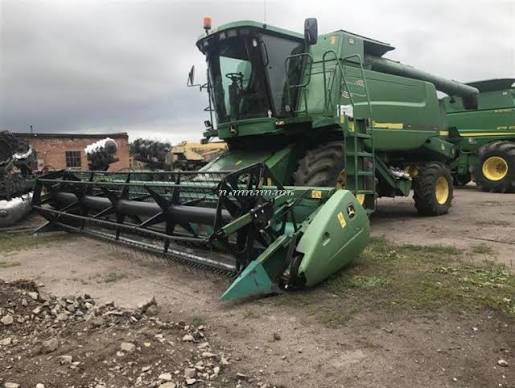

Image 1 of 5
Specifications
26 data points
Operating Specifications
| Operating Weight w/o Attachment | 30,027 lb |
|---|---|
| Fuel Capacity | 184.2 gal |
Engine
| Displacement | 494 in³ |
|---|---|
| Power Measured @ | 2,200 rpm |
| Number of Cylinders | 6 |
| Power | 305.0 hp |
| Power Boost Power | 338.0 hp |
Cleaning System
| Total Cleaning Area | 7,719 in³ |
|---|---|
| Cleaning Fan Speed - High | 1,600 rpm |
| Cleaning Fan Speed - Low | 750 rpm |
Feeding
| Conveyor Width | 66 in |
|---|---|
| Conveyor Length | 78 in |
| Conveyor Speed | 520 rpm |
Grain Handling
| Grain Tank Capacity | 2,906.3 gal |
|---|---|
| Unloading Speed | 2.2 bu/sec |
| Unloading Discharge Height | 170 in |
| Unloading Auger Length | 257 in |
Separating
| Separating Area | 11,935 in³ |
|---|---|
| Separator Type | 6 walker + power separator |
| Separator Length | 181 in |
Threshing
| Rotor Diameter | 26 in |
|---|---|
| Rotor Length | 66 in |
| Rotor Speed - High | 990 rpm |
| Rotor Speed - Low | 240 rpm |
| Concave Area | 1,938 in³ |
| Beater Grate Area | 775 in³ |
