John Deere

9750 STS

Combine

Operating Weight w/o Attachment
28,836 lb
Fuel Capacity
213.5 gal
Displacement
496 in³
Power
290.0 hp
All combines/harvesters

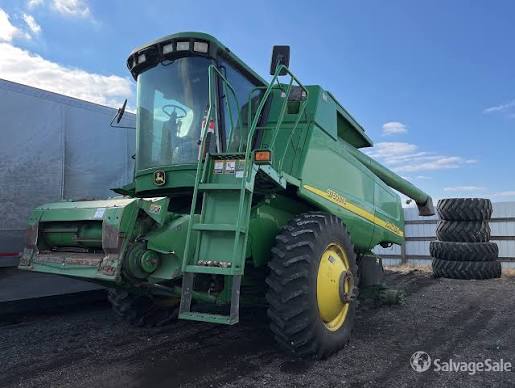

John Deere 9750 STS Combine
1 / 5
Image 1 of 5
Image: allmachines.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment28,836 lb
Fuel Capacity213.5 gal
Number of Gears3
Hydraulic System Fluid Capacity9.0 gal
Transmission Fluid Capacity2.6 gal

Engine

Engine specifications
Engine Model6081H
Displacement496 in³
Power Measured @2,200 rpm
Number of Cylinders6
Engine MakeJohn Deere
Power290.0 hp
Power Boost Power323.0 hp

Fluid Capacities

Fluid Capacities specifications
Crankcase oil volume7.6 gal

Electrical System

Electrical System specifications
Alternator—
Voltage12 V

Cleaning System

Cleaning System specifications
Total Cleaning Area7,053 in³

Grain Handling

Grain Handling specifications
Grain Tank Capacity2,338.5 gal
Unloading Speed2.2 bu/sec

Separating

Separating specifications
Separating Area1,860 in³
Separator Length123 in
