John Deere

CT332

Compact Track Loader

Operating Weight
10,825 lb
Max Speed - high range
7.9 mph
Displacement
186 in³
Gross Power
82.0 hp
All compact track loaders

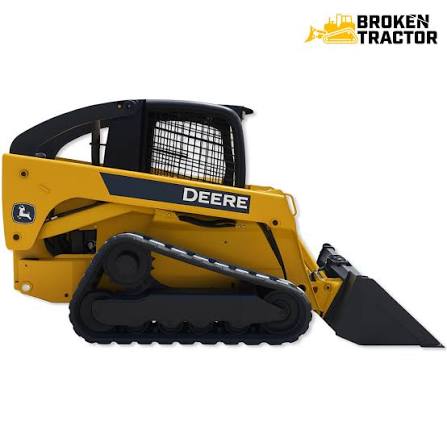

John Deere CT332 Compact Track Loader
1 / 5
Image 1 of 5
Image: rent1usa.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,825 lb
Max Speed - high range7.9 mph
Max Speed - low range5.3 mph
Fuel Capacity28.0 gal
Operating Voltage12 V
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine Model5030Tw
Displacement186 in³
Power Measured @2,800 rpm
Gross Power82.0 hp
Net Power76.0 hp
Number of Cylinders5
AspirationTurbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow24.0 gal/min
Relief Valve Pressure3,100 psi

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab84 in
Reach at Max Lift and Dump33 in
Width Over Tracks81 in
Length with Bucket139 in
Clearance at Max Lift and Dump103 in
Turning Radius from Center - inc bucket84 in
Length - without Bucket117 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Width of Track18 in
Number of Track Rollers per Side5
Track Gauge64 in

Loader

Loader specifications
Tipping Angle9,200 °
Operating Load3,201 lb
Breakout Force—
