John Deere
Rostselmash
ACROS 540
Combine
24 specifications
John Deere
S670
- Operating Weight w/o Attachment
- 36,114 lb
- Fuel Capacity
- 251.0 gal
- Displacement
- 549 in³
- Power
- 500.3 hp
1 / 5

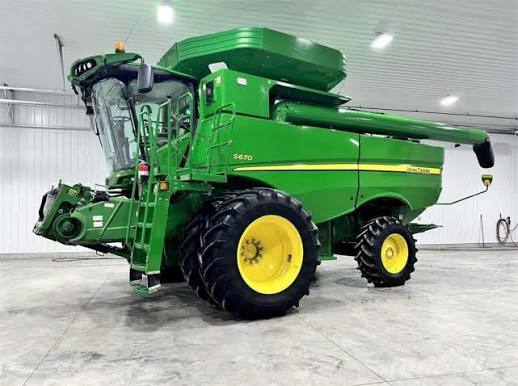

Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight w/o Attachment | 36,114 lb |
|---|---|
| Fuel Capacity | 251.0 gal |
Engine
| Engine Model | John Deere 6-cyl. 9.0 L |
|---|---|
| Displacement | 549 in³ |
| Power Measured @ | 2,200 rpm |
| Number of Cylinders | 6 |
| Power | 500.3 hp |
| Power Boost Power | 45.6 hp |
Cleaning System
| Total Cleaning Area | 7,905 in³ |
|---|---|
| Cleaning Fan Speed - High | 1,350 rpm |
| Cleaning Fan Speed - Low | 620 rpm |
Feeding
| Conveyor Width | 55 in |
|---|---|
| Conveyor Length | 68 in |
Grain Handling
| Grain Tank Capacity | 2,801.1 gal |
|---|---|
| Unloading Speed | 3.3 bu/sec |
| Unloading Auger Length | 270 in |
Separating
| Separating Area | 3,704,513 in³ |
|---|---|
| Separator Type | rotary |
| Separator Length | 123 in |
| Discharge Grate Area | 555 in³ |
Threshing
| Rotor Diameter | 30 in |
|---|---|
| Rotor Length | 5 in |
| Rotor Speed - High | 1,000 rpm |
| Rotor Speed - Low | 210 rpm |
