John Deere

S680

Combine

Operating Weight w/o Attachment
36,114 lb
Fuel Capacity
305.2 gal
Displacement
824 in³
Power
473.0 hp
All combines/harvesters

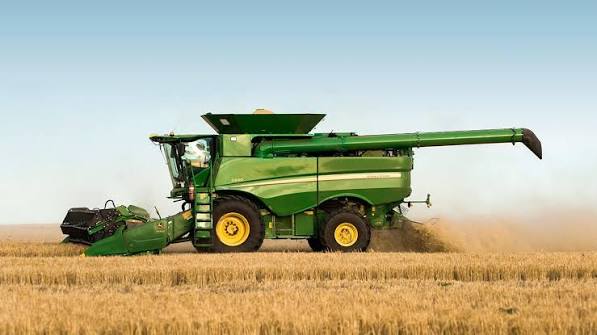

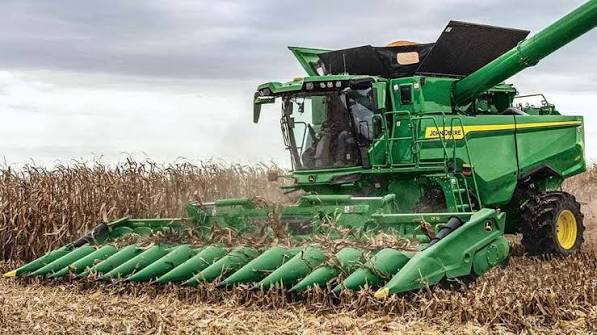

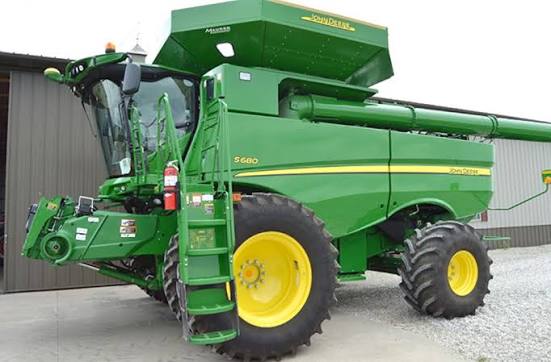

John Deere S680 Combine
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment36,114 lb
Fuel Capacity305.2 gal

Engine

Engine specifications
Engine ModelJohn Deere PowerTech PSS Engine
Displacement824 in³
Power Measured @2,200 rpm
Number of Cylinders6
Power473.0 hp
Power Boost Power50.0 hp

Cleaning System

Cleaning System specifications
Total Cleaning Area8,138 in³
Cleaning Fan Speed - High1,250 rpm
Cleaning Fan Speed - Low620 rpm

Feeding

Feeding specifications
Conveyor Width55 in
Conveyor Length68 in

Grain Handling

Grain Handling specifications
Grain Tank Capacity2,801.1 gal
Unloading Speed3.3 bu/sec
Unloading Discharge Height173 in
Unloading Auger Length270 in

Separating

Separating specifications
Separating Area2,387 in³
Separator Typerotary
Discharge Grate Area1,705 in³

Threshing

Threshing specifications
Rotor Diameter30 in
Rotor Length123 in
Rotor Speed - High1,000 rpm
Rotor Speed - Low210 rpm
Concave Area1,705 in³
