John Deere
S690
- Operating Weight w/o Attachment
- 42,376 lb
- Fuel Capacity
- 330.0 gal
- Displacement
- 824 in³
- Power
- 616.9 hp
1 / 5

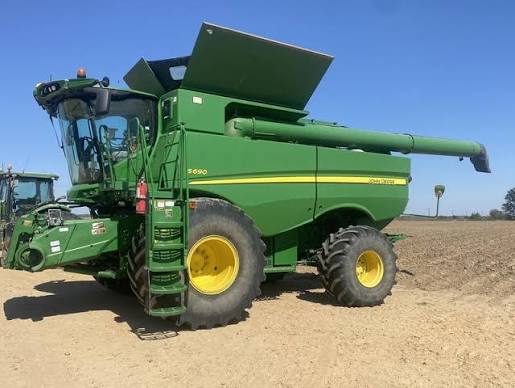

Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight w/o Attachment | 42,376 lb |
|---|---|
| Fuel Capacity | 330.0 gal |
Engine
| Engine Model | John Deere PowerTech PSS Engine |
|---|---|
| Displacement | 824 in³ |
| Power Measured @ | 2,100 rpm |
| Number of Cylinders | 6 |
| Power | 616.9 hp |
| Power Boost Power | 49.7 hp |
Cleaning System
| Total Cleaning Area | 8,680 in³ |
|---|---|
| Cleaning Fan Speed - High | 1,350 rpm |
| Cleaning Fan Speed - Low | 620 rpm |
Feeding
| Conveyor Width | 55 in |
|---|---|
| Conveyor Length | 68 in |
Grain Handling
| Grain Tank Capacity | 3,725.5 gal |
|---|---|
| Unloading Speed | 3.8 bu/sec |
| Unloading Auger Length | 83 in |
Separating
| Separating Area | 2,390 in³ |
|---|---|
| Separator Type | rotary |
| Discharge Grate Area | 698 in³ |
Threshing
| Rotor Diameter | 30 in |
|---|---|
| Rotor Length | 123 in |
| Rotor Speed - High | 1,000 rpm |
| Rotor Speed - Low | 210 rpm |
| Concave Area | 1,705 in³ |
