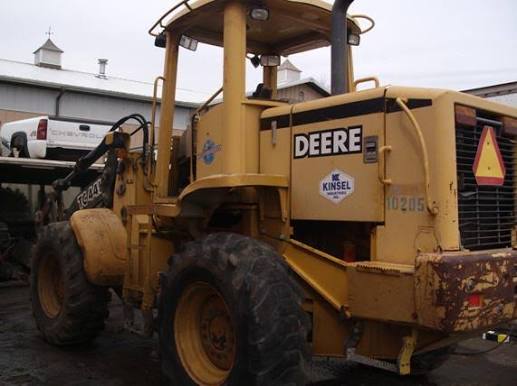

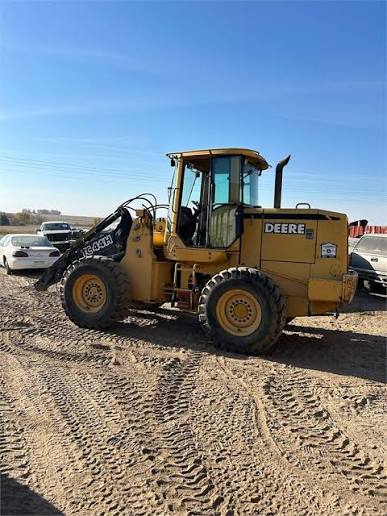

TC44H

Specifications

52 data points

Operating Specifications specifications
Operating Weight	228,513 lb
Fuel Capacity	48.0 gal
Tire Size	17.5-25
Hydraulic System Fluid Capacity	28.0 gal
Operating Voltage	24 V
Turning Radius	186 in
Rear Axle Oscillation	24 °
Alternator Supplied Amperage	55 A
Cooling System Fluid Capacity	5.1 gal
Transmission Fluid Capacity	3.4 gal
Engine Oil Capacity	3.4 gal
Static Tipping Load - Bucket	13,190 lb
Front Diff Fluid Capacity	4.0 gal
Rear Diff Fluid Capacity	4.0 gal
Static Tipping Load - Forks	10,333 lb
Static Tipping Load - Material Handler	6,860 lb

Dimensions specifications
Ground Clearance	15 in
Height - Top of Cab	124 in
Wheelbase	109 in
Width Over Tires	93 in
Hinge Pin - Max Height	145 in
Reach at Max Height and Dump	50 in
Length w/ Bucket on Ground	275 in
Dump Clearance at Max Lift	106 in
Max Lift Height	138 in
Fork Tine Length	49 in
Length with out Forks on Ground	291 in
Hook Reach at Max Lift - standard	86 in
Hook Height at Max Lift - extended	271 in
