Jonyang

JY210E

Excavator

Operating Weight
42,000 lb
Max Digging Depth
258 in
Net Power
169.0 hp
All excavators

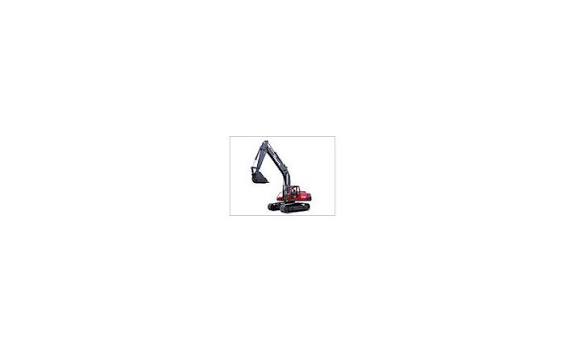

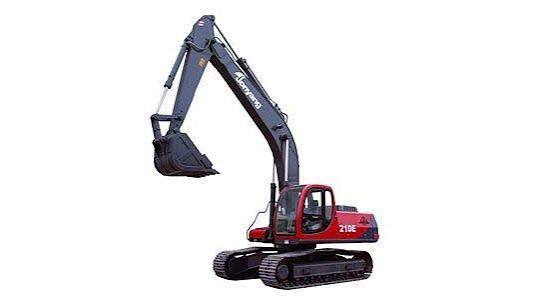

Jonyang JY210E Excavator
1 / 5
Image 1 of 5
Image: japanese-engineparts.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight42,000 lb
Hydraulic Pump Flow Capacity124.2 gal/min
Hydraulic System Relief Valve Pressure4,351 psi

Engine

Engine specifications
Engine ModelCummins 6A5 9-C
Net Power169.0 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab109 in
Length of Track on Ground148 in
Tail Swing Radius117 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance42 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge95 in
Max Travel Speed3.2 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth258 in
Max Reach Along Ground395 in
Max Loading Height253 in
Max Cutting Height364 in
Shipping Length of Unit385 in
Shipping Height of Unit130 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm
