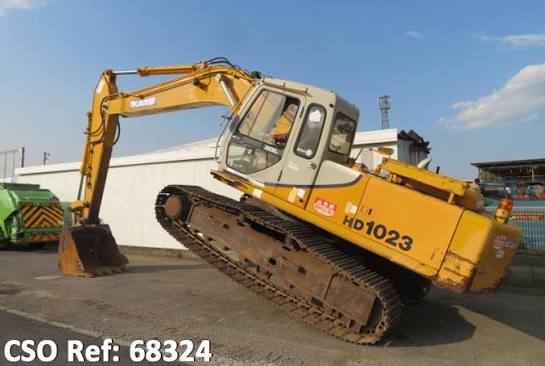

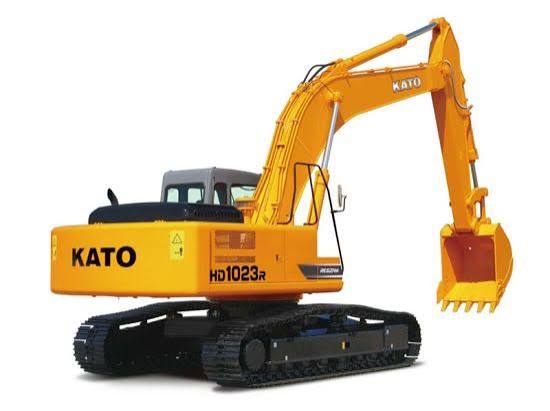

Kato
HD1023II
- Operating Weight
- 50,706 lb
- Max Digging Depth
- 257 in
- Max Digging Depth
- 276 in
- Net Power
- 167.7 hp
1 / 5
Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight | 50,706 lb |
|---|---|
| Fuel Capacity | 100.4 gal |
| Hydraulic Pump Flow Capacity | 130.6 gal/min |
| Hydraulic System Fluid Capacity | 76.7 gal |
| Hydraulic System Relief Valve Pressure | 4,772 psi |
| Engine Oil Capacity | 5.9 gal |
| Cooling System Fluid Capacity | 6.8 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.0 gal |
| Alternator Supplied Amperage | 35 A |
Engine
| Engine Model | C 6D34-TL |
|---|---|
| Displacement | 358 in³ |
| Power Measured @ | 2,150 rpm |
| Net Power | 167.7 hp |
| Aspiration | turbocharged |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 441 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 117 in |
| Length of Track on Ground | 137 in |
| Tail Swing Radius | 117 in |
| Width to Outside of Tracks | 119 in |
| Removal Counterweight Clearance | 44 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 95 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 47 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 257 in |
|---|---|
| Max Loading Height | 269 in |
| Max Vertical Wall Digging Depth | 227 in |
| Max Cutting Height | 390 in |
Bucket
| Reference Bucket Capacity | 1.40 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.00 yd³ |
| Minimum Bucket Capacity | 0.80 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 276 in |
|---|---|
| Max Vertical Wall Digging Depth | 247 in |
| Max Cutting Height | 397 in |
| Max Loading Height | 276 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 316 in |
|---|---|
| Max Cutting Height | 414 in |
| Max Loading Height | 294 in |
| Max Vertical Wall Digging Depth | 283 in |
