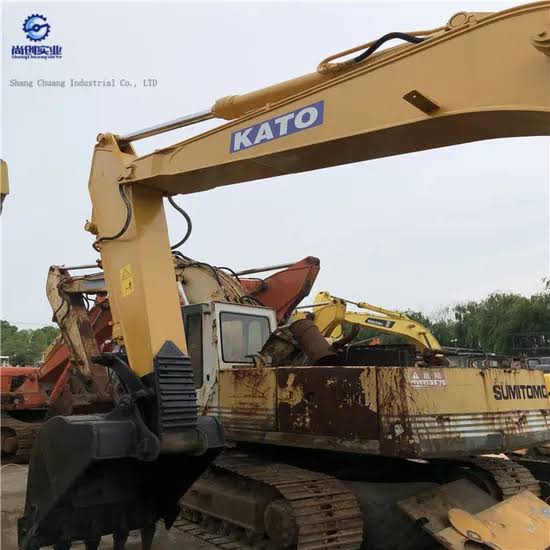

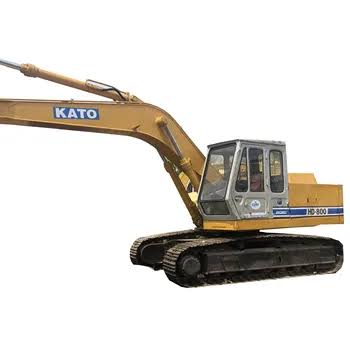

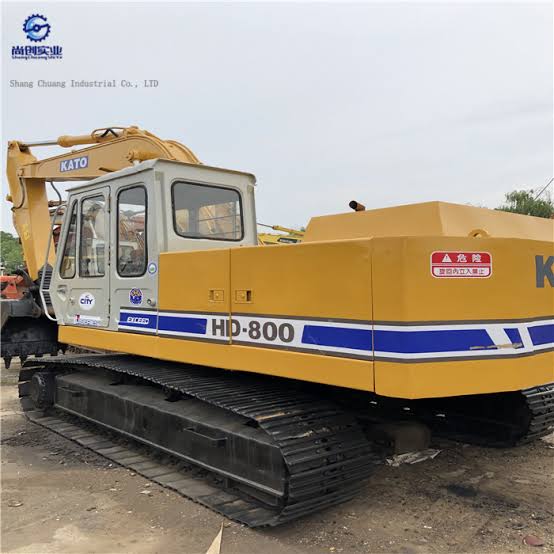

Kato
HD800VIILC
- Operating Weight
- 47,399 lb
- Max Digging Depth
- 246 in
- Max Digging Depth
- 265 in
- Net Power
- 138.2 hp
1 / 5
Image 1 of 5
Specifications
51 data points
Operating Specifications
| Operating Weight | 47,399 lb |
|---|---|
| Fuel Capacity | 84.6 gal |
| Hydraulic Pump Flow Capacity | 122.1 gal/min |
| Hydraulic System Fluid Capacity | 76.7 gal |
| Hydraulic System Relief Valve Pressure | 4,760 psi |
| Engine Oil Capacity | 5.3 gal |
| Cooling System Fluid Capacity | 6.7 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.4 gal |
| Alternator Supplied Amperage | 30 A |
Engine
| Engine Model | 6D14-T |
|---|---|
| Displacement | 400 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 138.2 hp |
| Aspiration | turbocharged |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 380 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Length of Track on Ground | 150 in |
| Tail Swing Radius | 120 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 43 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 103 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 55 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 39,700 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 246 in |
|---|---|
| Max Reach Along Ground | 376 in |
| Max Loading Height | 257 in |
| Max Vertical Wall Digging Depth | 227 in |
| Max Cutting Height | 379 in |
Bucket
| Reference Bucket Capacity | 1.20 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.80 yd³ |
| Minimum Bucket Capacity | 0.80 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 265 in |
|---|---|
| Max Vertical Wall Digging Depth | 246 in |
| Max Cutting Height | 386 in |
| Max Loading Height | 264 in |
| Max Reach Along Ground | 393 in |
| Shipping Length of Unit | 385 in |
| Shipping Height of Unit | 117 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 304 in |
|---|---|
| Max Cutting Height | 401 in |
| Max Loading Height | 278 in |
| Max Vertical Wall Digging Depth | 285 in |
| Max Reach Along Ground | 428 in |
